7.9.3.3. Delete

7.9.3.3.1. Delete from history and sketch
7.9.3.3.1.1. Delete Selected Step
7.9.3.3.1.2. Delete the selected step with its dependent elements Delete
7.9.3.3.1.3. Delete the last step
7.9.3.3.2. Delete using the entry in the "Sketch History" docking window
7.9.3.3.2.1. Delete Element

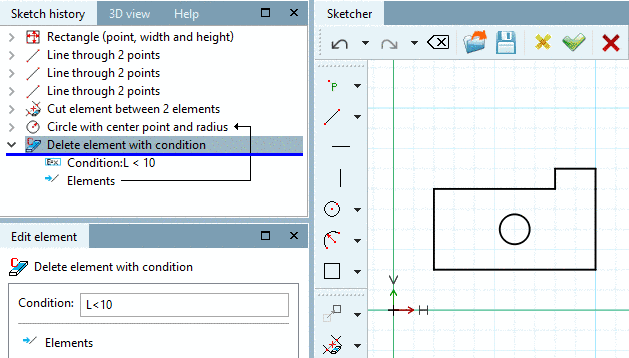

7.9.3.3.2.2. Conditionally Delete Element
7.9.3.3.2.3. Delete all elements except CP

There are several ways to delete elements:

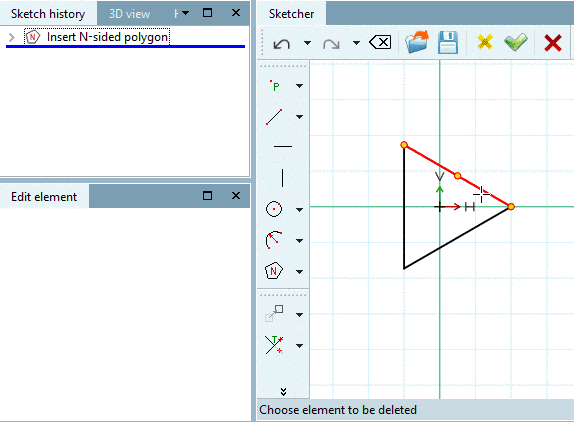

  1. Delete from Sketch and History

    Removes the element from the sketch AND the history.

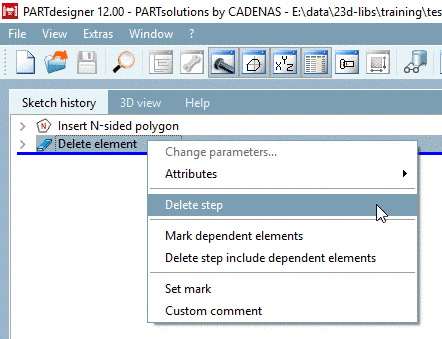

  2. Delete with an entry in the history

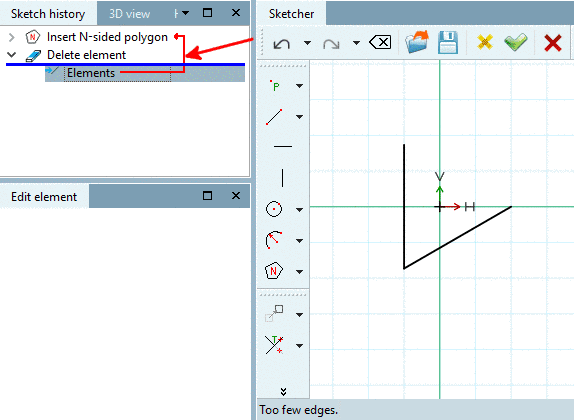

    Adds a delete element [Delete element] to the history. When calculating the history, the affected elements are only removed at this point. This has the advantage that dependent elements can be created up to that point.

Overview of the new Delete buttons

Overview of the new Delete buttons

[Note]Note

You can undo the deletion process by undoing the last step.

To do so, click on the ribbon, click the Undo button.
