7.8.12. Attribute algorithms

7.8.12.2. Syntax - Buttons for creating the formula

If you use the $VAR= | IF | ELSEIF buttons, you can be sure that the correct syntax is used when creating the formula.

	Note
	Finally, use Check to check the entire entry.

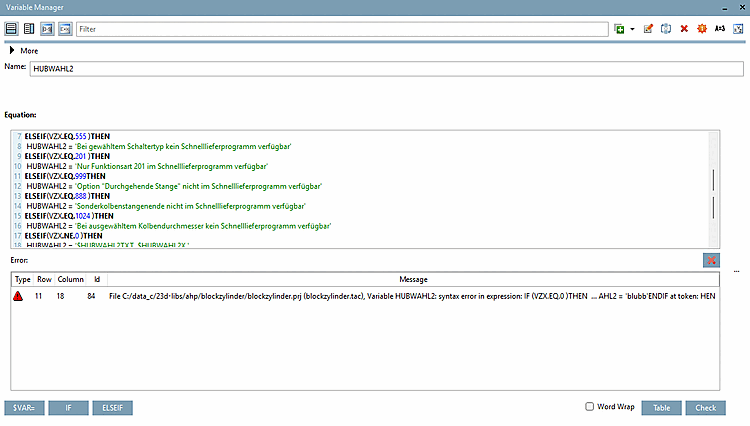

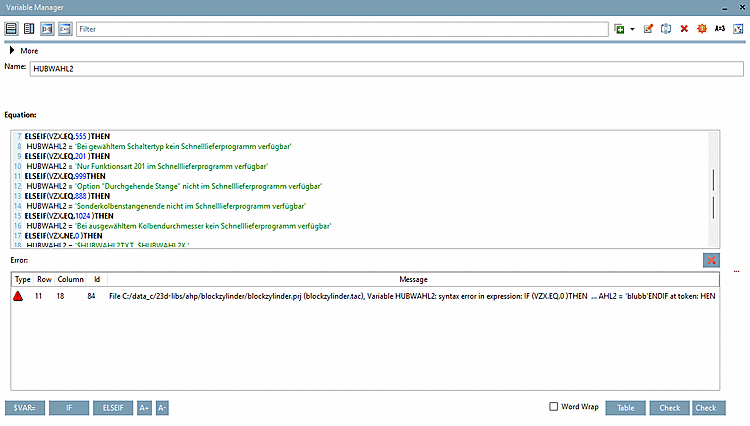

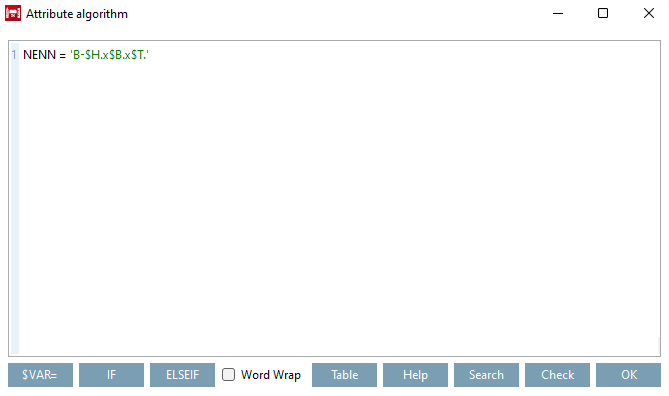

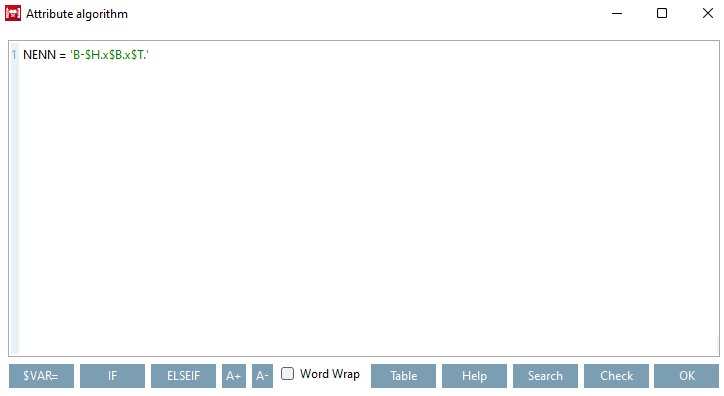

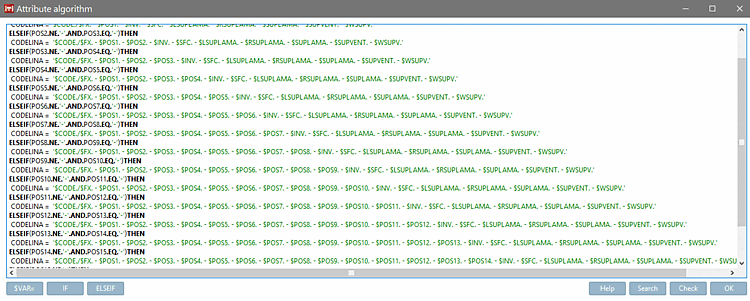

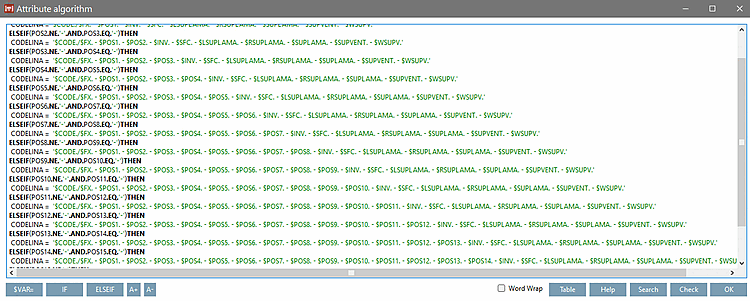

"Feature algorithm [Attribute algorithm] " dialog box

$VAR=
This button only transfers the variable displayed under Name to the input field.
IF
An algorithm built using an IF condition can look like this:
```
IF ( ) THEN
   D3 =
ELSE
   D3 =
ENDIF
```
Enter your condition between the brackets () (e.g. "L1.EQ.10"). In this example, "D3" is the variable selected in the variable list.
After THEN D3 = enter the value that D3 should assume if the condition is met .
ELSE D3 = is followed by the value for D3 if the condition is not fulfilled . ENDIF concludes the condition.
Example with values:
```
IF (L1.EQ.10) THEN
D3 = 20
ELSE
D3 = 30
ENDIF
```
ELSEIF
-> The following is generated:
```
ELSEIF ( ) THEN
 <selektierte Variable> =
```
If case distinctions are to be made, ELSEIF statements can be used.

Note
ELSEIF case distinctions must be concluded with an ELSE at the end.

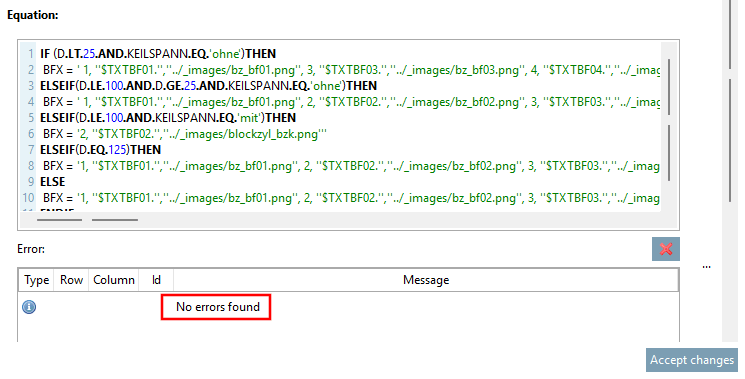

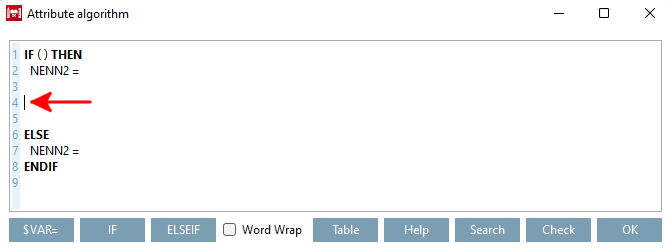

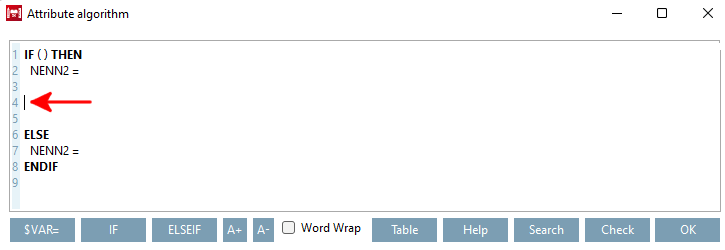

So before you click, place the cursor in the correct position before the ELSE command.

Example with values
```
IF (L1.EQ.10) THEN
D3 = 10
ELSEIF (L1.EQ.20) THEN
D3 = 20
ELSEIF (L1.EQ.30) THEN
D3 = 30
ELSE
D3 = 40
ENDIF
```

Within a feature algorithm variable [Attribute algorithm], several IF conditions can also be connected in series.

The use of a single IF condition with ELSEIF case distinctions would often lead to much more complex solutions with many more ELSEIFs.

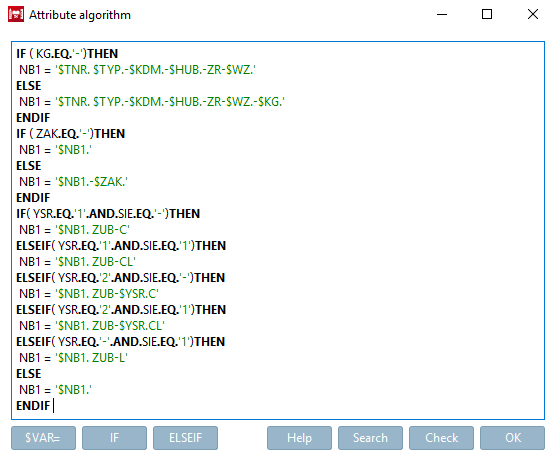

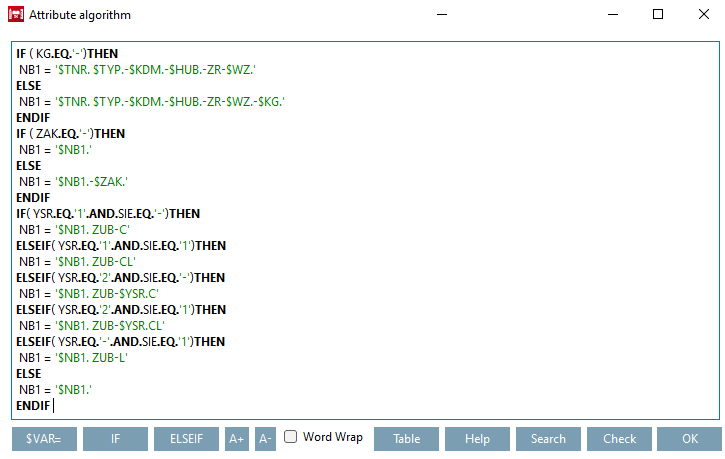

Structure of conditions with the help of an example:

IF ( KG.EQ.'-')THEN
 NB1 = '$TNR. $TYP.-$KDM.-$HUB.-ZR-$WZ.'
ELSE
 NB1 = '$TNR. $TYP.-$KDM.-$HUB.-ZR-$WZ.-$KG.'
ENDIF
IF ( ZAK.EQ.'-')THEN
 NB1 = '$NB1.'
ELSE
 NB1 = '$NB1.-$ZAK.'
ENDIF
IF( YSR.EQ.'1'.AND.SIE.EQ.'-')THEN
 NB1 = '$NB1. ZUB-C'
ELSEIF( YSR.EQ.'1'.AND.SIE.EQ.'1')THEN
 NB1 = '$NB1. ZUB-CL'
ELSEIF( YSR.EQ.'2'.AND.SIE.EQ.'-')THEN
 NB1 = '$NB1. ZUB-$YSR.C'
ELSEIF( YSR.EQ.'2'.AND.SIE.EQ.'1')THEN
 NB1 = '$NB1. ZUB-$YSR.CL'
ELSEIF( YSR.EQ.'-'.AND.SIE.EQ.'1')THEN
 NB1 = '$NB1. ZUB-L'
ELSE
 NB1 = '$NB1.'
ENDIF

Im  ersten IF wird NB1 initialisiert.




Im zweiten IF wird an NB1 etwas drangehängt.




Im dritten IF wird nochmal etwas drangehängt.

Important notes:

The first IF condition must contain an ELSE alternative to ensure that the variables are initialized. The remaining IF conditions can optionally contain ELSE alternatives.

Correct:

IF (OPZ1.EQ.'-' )THEN
 LINAALG = '$IDNR./$CX1./$VL./$MOTX./$OM1./$COEL./$DA./$AP1./$AA1.'
ELSE
 LINAALG = '$IDNR./$CX1./$VL./$MOTX./$OM1./$COEL./$DA./$AP1./$AA1./$OPZ1.'
ENDIF
IF (OPZ2.EQ.'-' )THEN
 LINAALG = '$LINAALG./'
ELSE
 LINAALG = '$LINAALG./$OPZ2.'
ENDIF...

Not correct: (The first IF does not contain an ELSE)

IF (OPZ1.NE.'-' )THEN
 LINAALG = '$IDNR./$CX1./$VL./$MOTX./$OM1./$COEL./$DA./$AP1./$AA1./$OPZ1.'
ENDIF
IF (OPZ2.NE.'-' )THEN
 LINAALG = '$LINAALG./$OPZ2.'
ENDIF...

Also correct: If the first statement is a simple statement without a condition, an "ELSE" can be omitted completely, as the statement always initializes the variable.

CNSTYPECODE = '$MODEL.$W.-$ST.-$THETA.-$TYPE.-$SPRING.'
IF(K.EQ.1)THEN
 CNSTYPECODE = '$CNSTYPECODE.-K'
ENDIF
IF(FK.EQ.1)THEN
 CNSTYPECODE = '$CNSTYPECODE.-FK'
ENDIF
IF(N.EQ.1)THEN
 CNSTYPECODE = '$CNSTYPECODE.-N'
ENDIF

The first condition, which is always calculated, has to prevent an endless loop. Following "if...endif" always call the first condition and attach an additional value.

So in the first condition do not use the variable of assignment for the ELSE case.

Correct:

IF (OPZ1.EQ.'-' )THEN
 LINAALG = '$IDNR./$CX1./$VL./$MOTX./$OM1./$COEL./$DA./$AP1./$AA1.'
ELSE
 LINAALG = '$IDNR./$CX1./$VL./$MOTX./$OM1./$COEL./$DA./$AP1./$AA1./$OPZ1.'
ENDIF
IF (OPZ2.EQ.'-' )THEN
 LINAALG = '$LINAALG./'
ELSE
 LINAALG = '$LINAALG./$OPZ2.'
ENDIF...

Not correct: (difference in red)

IF (OPZ1.EQ.'-' )THEN
 LINAALG = '$IDNR./$CX1./$VL./$MOTX./$OM1./$COEL./$DA./$AP1./$AA1.'
ELSE
 LINAALG = '$LINAALG./$OPZ1.'
ENDIF
IF (OPZ2.EQ.'-' )THEN
 LINAALG = '$LINAALG./'
ELSE
 LINAALG = '$LINAALG./$OPZ2.'
ENDIF...
