1.6.2.  Insert from the standard and purchased parts library via "Insert model"

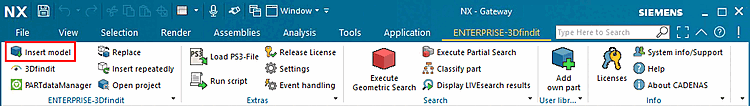

Insert model (the illustration shows NX as an example)

Insert model (the illustration shows NX as an example)

If no application has been started yet, the ENTERPRISE 3Dfindit client starts, if this is not possible, PARTdataManager starts; if an application is already running, the user is asked whether he wants to start 3Dfindit or PARTdataManager.

Also see Section 1.6.1, “ Insert from the standard and purchased parts library via "PARTdataManager"” bzw. Section 1.6.3, “ Insert from the Standard and Purchased Parts Library via "3Dfindit" ”.

[Important]Important

Custom parts cannot be placed using this dialog because they come from the PLMsynchro database and do not have classified attachment points .
