3.1.10.1.1.1. Current view

If you want to import the currently set direction of the coordinate system from the 3D view into the 2D derivation, in the list field select the option Current view.

3D view

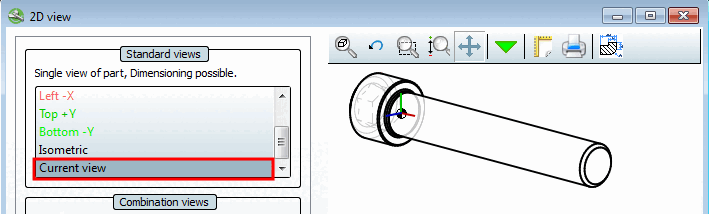

2D derivation - Current view

	Note

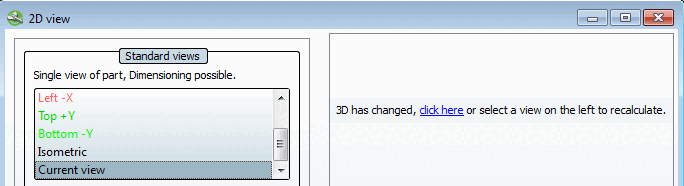

Should you switch from the 2D view into the Part view and select a new variant of the opened part or choose another object via the Part selection, you must simply click on the link on the right side.

Note

Should you switch from the 2D view into the Part view and select a new variant of the opened part or choose another object via the Part selection, you must simply click on the link on the right side.
