2dscales.cfg

Settings for the 2D view in 3Dfindit/PARTdataManager

For details, see Section 7.11, “Docking window "2D derivation " - Create your own combination views (*.dw) ” in eCATALOG 3Dfindit.

3dfconfig.cfg

3Dfindit customizations

catalogicons.cfg

Catalog Icons

din962_global.cfg

DIN 962 controls additional information for bolts and nuts for certain applications

filesystems.cfg

Controls caching of CADENAS_DATA index files

geomsearch.cfg

Contains internal parameters for the geometric index

jdbc.cfg

Saves the string and password of the database connection

material.cfg (without ERP integration)

Material specification for export

odbc.cfg

String and password for the database connection

pappclient.cfg

Client settings of the PARTapplication Server. See Section 1.4.5.9.2, “ AppServer Client: Configuration ”.

pappserver.cfg

Server settings of the PARTapplication Server. See Section 1.4.5.9.1, “ AppServer Service: Configuration ”.

partsol.cfg

Settings for all 3Dfindit modules, especially PARTdataManager GUI settings

pcdstart.cfg

Settings for offline CDs

CAD-specific configuration files if<cadname>.cfg and ifacecommon.cfg. See Chapter 3, 3Dfindit - CAD Integration - Administration .

plinkcommon.cfg

General ERP settings. Most settings can be found in the user interface under PARTlinkManager -> Extras menu -> Configure ERP environment.

For features on Strategic Parts Management, see Chapter 5, Strategic Parts Management .

plinkgroups.cfg

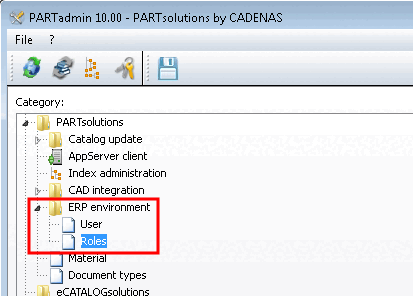

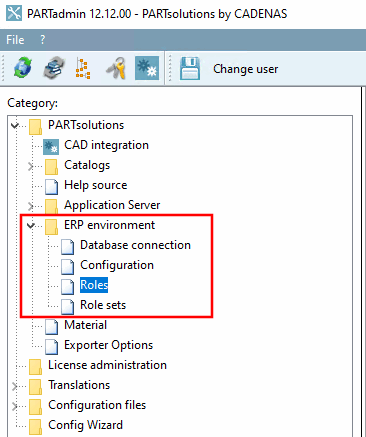

Contains groups/roles for individual users. In the user interface, you will find most of the setting options in the "Roles [Roles]" category [Category].

For features on Strategic Parts Management, see Chapter 5, Strategic Parts Management .

plinkusers.cfg

Contains the created users. In the user interface, you can find the corresponding settings in the category [Category] under ERP environment > Role records [Role sets].

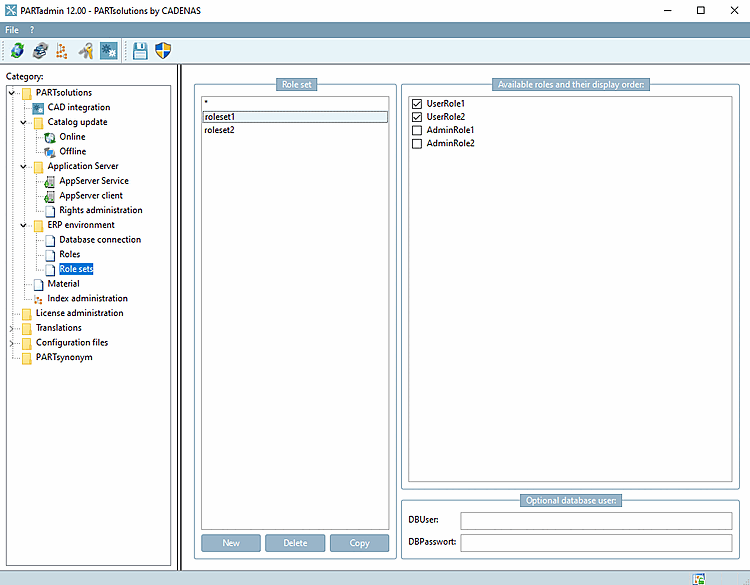

Category "Roll sets [Role sets]"

For features on Strategic Parts Management, see Chapter 5, Strategic Parts Management .

erpcustom.cfg

The configuration file erpcustom.cfg is used to adapt other ERP processes to the customer's needs (e.g. the dialog when adding an ERP number to LinkDB).

material_assign.cfg (with ERP integration)

Material specification for export

See Section 5.12.1.8.1, “ Fill list field via configuration file ”.

nightupdate.cfg

Used to set up the nightly transfer of information from third-party systems to ENTERPRISE 3Dfindit.

plinktemplates.cfg

Contains settings for export tables [Export tables] (PARTlinkManager -> Extras menu [Extras] -> Configure ERP environment -> Export tables Tabbed page).

plinkupdatemgr.cfg

Contains basic settings for the Update Manager [Update manager] that do not normally need to be adjusted. For details on the Update Manager [Update manager], see Section 5.17.5, “ Catalog Update with ERP Integration - Resolving Assignment Issues with Update Manager (via PARTlinkManager) ”.
