1.1.1.2.2.12. Display the variable unit next to the variable

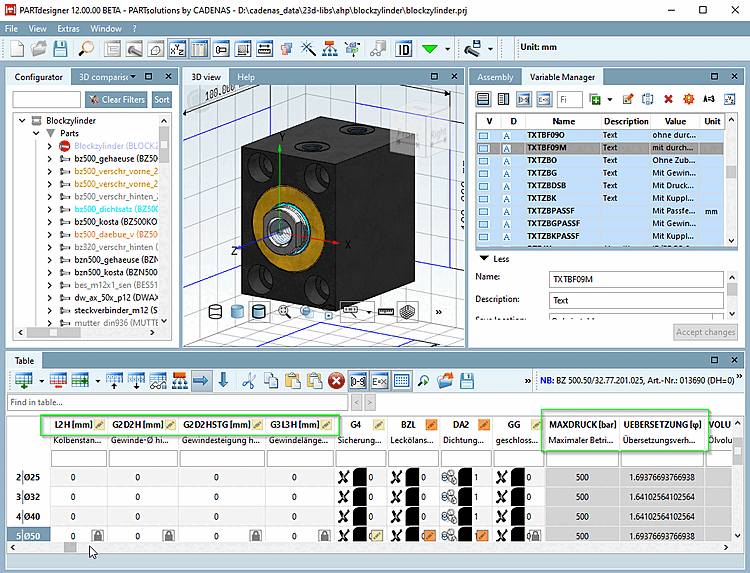

In the PARTdesigner table (and PARTdataManager table), the unit is displayed by default next to the variable.

  • To disable the option for PARTdesigner (i.e., restore the previous behavior), set the corresponding key value to 0 [the default is 1].

    $CADENAS_USER/pdesign3d.cfg > block SettingsTable > key showUnitNearVarName

  • To disable the PARTdataManager option (i.e., restore the previous behavior), set the corresponding key value to 0 [the default is 1].

    $CADENAS_USER/psolopt.cfg > block SettingsTable > key showUnitNearVarName
