In the following, the contexts are explained using an example.

	Tip
	Using a standard installation, under $CADENAS/training, you can find a file "training.cip". When uncipping the file, the example is made available under "23dlibs/training/assembly/scharnier".

From the parts wing.prj and bolt.prj we will create a hinge as an assembly table project. Assembling happens on the basis of already set connection points.

Wing

Bolt

Hinge

Die angularity of the hinge is set through the Variable ("ANG") in a Rule.

	Note
	An Assembly Table Project is basically created through an assembly configuration and an assembly template.

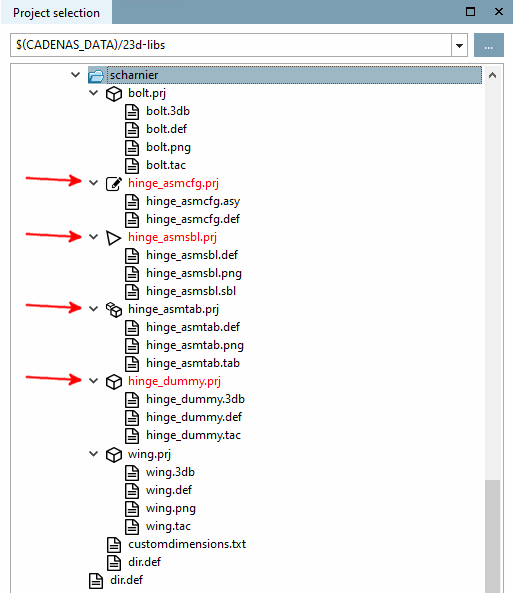

If you follow the example, you should be able to find all adjoining projects in your working directory at the end, such as the image to the right shows. Dummy starter part (hinge_dummy.prj) Assembly configuration (hinge_asmcfg.prj) Assembly template (hinge_asmsbl.prj) Assembly table project (hinge_asmtab.prj)

Project selection / Assembly configuration - template - assembly table project
