Topology facets can be combined with any other facets when filtering and work for all searches from the geo-database as well as with the text search. If you explicitly do not use the geo-db, the topology facets will not work.

In topostructure.cfg, block settings, you can create any facets. These are the default values:

TopoFacets=MinorDim, MediumDim, MajorDim, Thickness

For each value in the list, there is a block below it, which is used to configure the facet:

Example:

[TopoFacet_MinorDim]
attributeGroup=Part
attribute=MinorDim
DisplayName=Minor Dimension
MaxDistinctValues=10
DecimalPlaces=2
IconPath=$CADENAS_SETUP/bitmaps/topology/x.png
DefaultUnit=mm
MinValue=0
MaxValue=100000

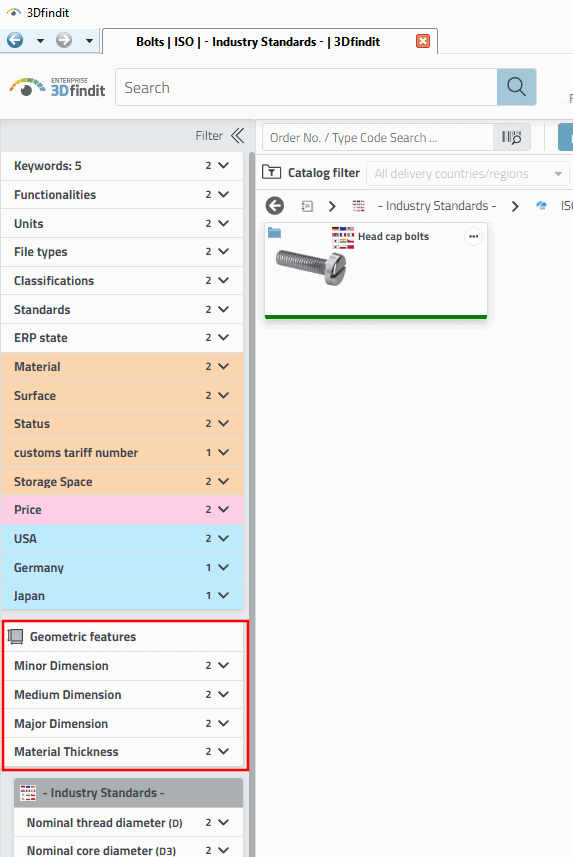

In 3Dfindit they are displayed in the Geometric features section:

More details on this can be found in Abschnitt 1.7.5.22, „ topostructure.cfg - PARTdataManager / 3Dfindit: GeoDb Topologiesuche “ in ENTERPRISE 3Dfindit (Professional) - Administration.
