8.9. Open Seamless with Geosearch function

Initial situation: Seamless is set in PARTcadAssistant.

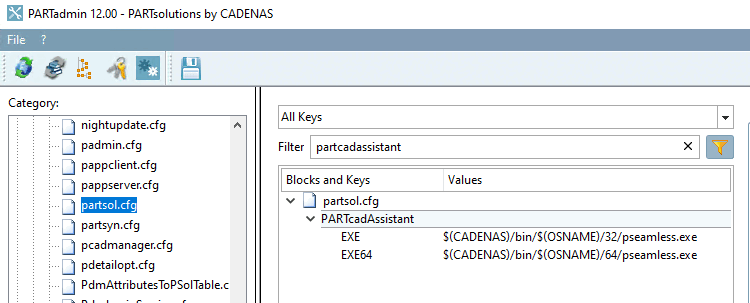

partsol.cfg -> block "PARTcadAssistant"

partsol.cfg -> block "PARTcadAssistant"

Nevertheless PARTdatamanger is opened when clicking Geometrische Suche durchführen [Execute Geometric Search].

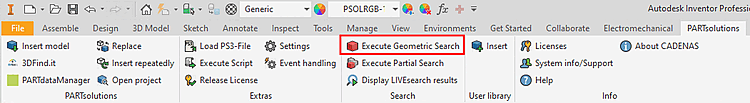

CAD menu -> Geometrische Suche durchführen [Execute Geometric Search]

CAD menu -> CAD menu -> Geometrische Suche durchführen [Execute Geometric Search] Geometrische Suche durchführen [Execute Geometric Search]

Do the following in order to change the behavior:[96]

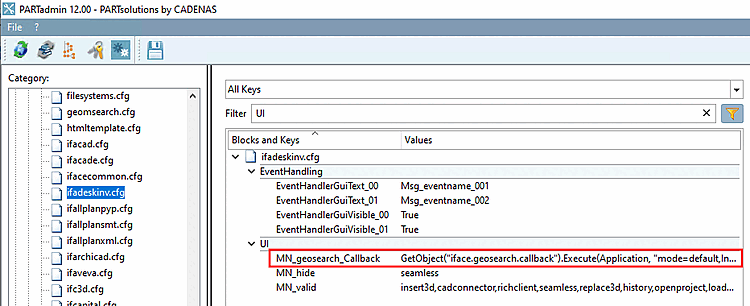

  1. In the desired if<cadname>.cfg, in the block UI, add the key MN_geosearch_Callback.

  2. Make following entry:

    GetObject("iface.geosearch.callback").Execute(Application, "mode=default,Interactive=1,
 OrderGet=GetSeamless;GetPartDataManager,OrderStart=StartSeamless;StartPartDataManager")

    -> Now Seamless will open.



[96] #143599
