SUPPLIER_PID
|
ENTRY
(library entry name)
| certified |
|
AAQ373 /
AAO676
(Manufacturer / Manufacturer product
number)
|
Article
Number
| certified |
|
AAQ373 /
AAM552
(Manufacturer / Manufacturer item
name)
AAQ373 / AAO682
(Manufacturer / Manufacturer product
name)
|
Article
Type
| certified |
|
AAQ373 /
AAO677
(Manufacturer / Manufacturer
name)
|
Supplier
| certified |
|
AAS252 / AAQ676 / AAQ520 /
AAC341
(Function group/Function/Function
identification/letter code .. IEC 81346-2)
|
DeviceLetterCode
| certified |
|
PRODUCT_DETAILS /
DESCRIPTION_LONG eng
|
Description
(Text
from one language)
| certified |
|
PRODUCT_DETAILS /
DESCRIPTION_LONG deu
PRODUCT_DETAILS / DESCRIPTION_SHORT deu
|
Description
german
| certified |
|
PRODUCT_DETAILS /
DESCRIPTION_LONG eng
PRODUCT_DETAILS / DESCRIPTION_SHORT eng
|
Description
english
| certified |
|
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID
(eCl@ss Nummer [Klasse] durch Klartext
ersetzen)
|
Class
(Text from one language)
| certified |
|
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID
(eCl@ss Nummer [Klasse] durch Klartext
ersetzen)
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_NAME
PRODUCT_DETAILS / DESCRIPTION_SHORT deu
|
Class german
| certified |
|
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID
(eCl@ss Nummer [Klasse] durch Klartext
ersetzen)
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_NAME
PRODUCT_DETAILS / DESCRIPTION_SHORT eng
|
Class english
| certified |
|
AAQ675 / AAQ682 / AAQ683 /
AAQ373 / AAO676
(Part relation / Part relation
variant / Associated part / Manufacturer / Manufacturer product
number)
AAQ675 / AAQ682 / AAQ683 /
AAN350
(Part relation / Part relation variant /
Associated part / Part relation to the main device
AAR847 (accessory), AAR849
(counterpart)
|
Attribute „Additional
Part“
| premium |
|
eCl@ss Basic
Attributes
|
Attribute
eCl@ss
| premium |
|
AAQ680 /
AAS193
(Additional Information / scope of
document)
[AAR667 Article preview] [AAR668 article view]
AAQ680 /
AAC311
(Additional Information / source as path
info)
|
Preview
| certified |
|
AAQ680 /
AAS193
(Additional Information / scope of
document)
AAQ680 /
AAC311
(Additional Information / source as path
info)
*.STP
|
Model 3D
Graphic
| certified |
|
AAQ680 /
AAS193
(Additional Information / scope of
document)
[AAR661 mechanical 2D] [AAV587 view from left] [AAV588 view from right] [AAV589 view from above] [AAV590 view from below ] [AAV591 view from the front] [AAV592 view from the rear]
AAQ680 /
AAC311
(Additional Information / source as path
info)
*.DXF
|
Model 2D
Graphic
| certified |
|
Symbol name read from the Name of
function.
Linked to E³.series symbol by mapping. (see
FunctionName)
|
ENTRY
(Symbol name)
| certified |
|
AAS252 /
AAQ676
(Function group / Function)
|
Function
| |
|
AAS252 / AAQ676 / AAQ520 /
AAN344
(Function identification / Function short
description)
|
FunctionName
(Symbol
name)
| certified |
|
AAS252 / AAQ676 / AAQ678 /
AAN495
(Device or connection / number of device
connectors)
|
Number of Pins
| certified |
|
AAQ678
(Device or connection)
|
DeviceAndConnection
| |
|
AAQ678 / AAQ671 /
AAN337
(Device or connection / Device connector /
Connector identification)
|
PinIdentifier
(see
model)
| certified |
|
AAQ678 / AAQ671 /
AAC342
(Device or connection / Device connector /
Connector name)
|
Connector name
| certified |
|
Additional Information to identify
male/female connector:
|
| |
|
M_ &
“SUPPLIER_PID“
(e.g. „M_Article Number“
[M_046938])
|
ENTRY
(Model name)
| certified |
|
PRODUCT_DETAILS /
DESCRIPTION_LONG eng
|
Description
(Text from one language)
| certified |
|
PRODUCT_DETAILS /
DESCRIPTION_LONG deu
PRODUCT_DETAILS / DESCRIPTION_SHORT deu
|
Description german
| certified |
|
PRODUCT_DETAILS/DESCRIPTION_LONG
eng
PRODUCT_DETAILS /
DESCRIPTION_SHORT eng
|
Description english
| certified |
|
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID
(eCl@ss Nummer [Klasse] durch Klartext
ersetzen)
|
Class
(Text from one language)
| certified |
|
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID
(eCl@ss Nummer [Klasse] durch Klartext
ersetzen)
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_NAME
PRODUCT_DETAILS / DESCRIPTION_SHORT deu
|
Class german
| certified |
|
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID
(eCl@ss Nummer [Klasse] durch Klartext
ersetzen)
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_NAME
PRODUCT_DETAILS / DESCRIPTION_SHORT eng
|
Class english
| certified |
|

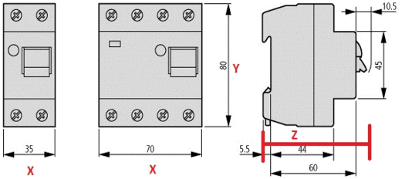

AAR080 / AAQ640 / AAQ667 /
BAF016
(M. and e.construction / construction
general / Size dimension / Width)
AAR080 / AAQ640 / AAQ667 /
BAA020
(M. and e.construction / construction
general / Size dimension / Height)
AAR080 / AAQ640 / AAQ667 /
BAB577
(M. and e.construction / construction
general / Size dimension / Depth)
|
X
Y
Z
| certified |
|
AAQ669 /
AAN507
(Fixing variant / Typ of
mounting)
List:
AAM168 = 35 Top-hat rail IEC/EN
60715
|
Mounting Description
| premium |
|
AAQ669 /
AAN505
(Fixing variant / Fixing supply point [in
mm])
|
Justification for points/ lines / areas
X/Y/Z
| premium |
|
AAM650
(Position (in mm))
X/Y/Z
|
PinPosition
| certified |
|
AAQ534 / AAQ533 / AAQ532 /
AAN512 value 2
(Wiring / Execution of the
electric connector / Conductor section (mm²) / single-wire conductor
cross-section (mm²))
|
MaxMMCrossSection
| certified |
|
AAQ534 / AAQ533 / AAQ532 /
AAN512 value 1
(Wiring / Execution of the
electric connector / Conductor section (mm²) / single-wire conductor
cross-section (mm²))
|
MinMMCrossSection
| certified |
|
AAQ534 / AAQ533 / AAQ532 /
AAS444
(Wiring / Execution of the electric
connector / Conductor section (mm²) / total maximum of cross-section
(mm²))
|
TotalMMCrossSection
| certified |
|
AAQ534 / AAQ533 / AAQ531 /
AAC754
(Wiring / Execution of the electric
connector / Conductor parameters (AWG/KCMIL) / max. single-wire
conductor size (AWG/KCMIL))
|
MaxAWGCrossSection
| Alternativ MM |
|
AAQ534 / AAQ533 / AAQ531 /
AAC753
(Wiring / Execution of the electric
connector / Conductor parameters (AWG/KCMIL) / min. single-wire
conductor size (AWG/KCMIL))
|
MinAWGCrossSection
| Alternativ MM |
|
AAQ534 / AAQ533 / AAQ531 /
AAC384
(Wiring / Execution of the electric
connector / Conductor parameters (AWG/KCMIL) / total maximum of
cross-section (AWG/KCMIL))
|
TotalAWGCrossSection
| Alternativ MM |
|
AAQ534 / AAQ533 /
AAM734
(Wiring / Execution of the electric
connector / Electrical connection type)
List: WAA065= Screw connection
...
When WAA068 (Plug-in
connection), AAR874 (female connector), AAR875 (male connector),
BAA481 (Flat plug-in connector) -> no CrossSection
needed
|
Connection Type
| premium |
|
AAQ534 /
AAN496
(Connection / direction of
connection)
|
Connection Direction
| premium |
|
AAQ534 /
AAN403
(Wiring / Number of executions of the
electric connector)
|
MaxWireCount
| premium |
|
AAQ672 /
AAN337
(Connection / Connector
identification)
|
PinIdentifier
(see
symbol)
| certified |
|
AAQ675 / AAQ682 / AAQ683 /
AAQ373 / AAO676
(Part relation / Part relation
variant / Associated part / Manufacturer / Manufacturer product
number)
AAQ675 / AAQ682 / AAQ683 /
AAN350
(Part relation / Part relation variant /
Associated part / Part relation to the main device
AAR847 (accessory), AAR849
(counterpart)
|
Attribute „Additional
Part“
| premium |
