| SUPPLIER_PID | ENTRY (library entry name) | certified |
AAQ373 /
AAO676 (Manufacturer / Manufacturer product
number) | Article Number | certified |
AAQ373 /
AAM552 (Manufacturer / Manufacturer item
name) AAQ373 / AAO682 (Manufacturer / Manufacturer product
name) | Article Type | certified |
AAQ373 /
AAO677 (Manufacturer / Manufacturer
name) | Supplier | certified |
AAS252 / AAQ676 / AAQ520
/ AAC341 (Function group/Function/Function
identification/letter code .. IEC 81346-2) | DeviceLetterCode | certified |
PRODUCT_DETAILS /
DESCRIPTION_LONG eng | Description (Text from one
language) | certified |
PRODUCT_DETAILS /
DESCRIPTION_LONG deu PRODUCT_DETAILS / DESCRIPTION_SHORT deu | Description german | certified |
PRODUCT_DETAILS /
DESCRIPTION_LONG eng PRODUCT_DETAILS / DESCRIPTION_SHORT eng | Description english | certified |
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID (eCl@ss Nummer
[Klasse] durch Klartext ersetzen) | Class (Text from one
language) | certified |
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID (eCl@ss Nummer [Klasse] durch Klartext
ersetzen) PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_NAME PRODUCT_DETAILS / DESCRIPTION_SHORT deu | Class german | certified |
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID (eCl@ss Nummer [Klasse] durch Klartext
ersetzen) PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_NAME PRODUCT_DETAILS / DESCRIPTION_SHORT eng | Class english | certified |
AAQ675 / AAQ682 /
AAQ683 / AAQ373 / AAO676 (Part relation
/ Part relation variant / Associated part / Manufacturer /
Manufacturer product number) AAQ675 / AAQ682 /
AAQ683 / AAN350 (Part relation / Part relation variant /
Associated part / Part relation to the main device AAR847
(accessory), AAR849 (counterpart) | Attribute „Additional
Part“ | premium |
eCl@ss Basic
Attributes | Attribute
eCl@ss | premium |
AAQ680 /
AAS193 (Additional Information / scope of
document) [AAR667 Article preview] [AAR668 article view]
AAQ680 / AAC311 (Additional
Information / source as path info) *.JPG | Preview
Picture | certified |
AAQ680 /
AAS193 (Additional Information / scope of
document) AAQ680 / AAC311 (Additional
Information / source as path info) *.STP | Model 3D
Graphic | certified |
AAQ680 /
AAS193 (Additional Information / scope of
document) [AAR661 mechanical 2D] [AAV587 view from left] [AAV588 view from right] [AAV589 view from above] [AAV590 view from below ] [AAV591 view from the front] [AAV592 view from the rear]
AAQ680 / AAC311 (Additional
Information / source as path info) *.DXF | Model 2D Graphic | certified |
Symbol name
read from the Name of function. Linked to
E³.series symbol by mapping. (see FunctionName) | ENTRY (Symbol
name) | certified |
AAS252 /
AAQ676 (Function group / Function)
| Function | |
AAS252 / AAQ676 /
AAQ520 / AAN344 (Function identification / Function
short description) | FunctionName (Symbol
name) | certified |
AAS252 / AAQ676 /
AAQ678 / AAN495 (Device or connection / number of
device connectors) | Number of Pins | certified |
AAQ678 (Device or
connection) | DeviceAndConnection | |
AAQ678 / AAQ671 /
AAN337 (Device or connection / Device connector /
Connector identification) | PinIdentifier (see
model) | certified |
AAQ678 / AAQ671 /
AAC342 (Device or connection / Device connector /
Connector name) | Connector name | certified |
Additional
Information to identify male/female connector:
|
| |
M_ &
“SUPPLIER_PID“ (e.g. „M_Article Number“
[M_046938]) | ENTRY (Model name) | certified |
PRODUCT_DETAILS /
DESCRIPTION_LONG eng
| Description (Text from one
language) | certified |
PRODUCT_DETAILS /
DESCRIPTION_LONG deu PRODUCT_DETAILS / DESCRIPTION_SHORT deu
| Description german | certified |
PRODUCT_DETAILS/DESCRIPTION_LONG
eng PRODUCT_DETAILS /
DESCRIPTION_SHORT eng | Description english | certified |
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID (eCl@ss Nummer [Klasse] durch Klartext
ersetzen) | Class (Text from one
language) | certified |
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID (eCl@ss Nummer [Klasse] durch Klartext
ersetzen) PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_NAME PRODUCT_DETAILS / DESCRIPTION_SHORT deu | Class german | certified |
PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_ID (eCl@ss Nummer [Klasse] durch Klartext
ersetzen) PRODUCT_FEATURES /
REFERENCE_FEATURE_GROUP_NAME PRODUCT_DETAILS / DESCRIPTION_SHORT eng | Class english | certified |

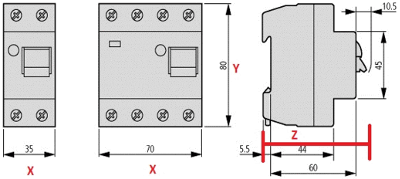

AAR080 / AAQ640 / AAQ667 / BAF016 (M. and
e.construction / construction general / Size dimension /
Width) AAR080 / AAQ640 / AAQ667 / BAA020 (M. and
e.construction / construction general / Size dimension /
Height) AAR080 / AAQ640 / AAQ667 / BAB577 (M. and e.construction / construction
general / Size dimension / Depth) |
X
Y
Z
| certified |
AAQ669 /
AAN507 (Fixing variant / Typ of
mounting) List: AAM168 = 35
Top-hat rail IEC/EN 60715 | Mounting Description | premium |
AAQ669 /
AAN505 (Fixing variant / Fixing supply point [in
mm]) | Justification for points/ lines / areas
X/Y/Z | premium |
AAM650 (Position (in mm)) X/Y/Z | PinPosition | certified |
AAQ534 / AAQ533 /
AAQ532 / AAN512 value 2 (Wiring /
Execution of the electric connector / Conductor section (mm²) /
single-wire conductor cross-section (mm²)) | MaxMMCrossSection | certified |
AAQ534 / AAQ533 /
AAQ532 / AAN512 value 1 (Wiring /
Execution of the electric connector / Conductor section (mm²) /
single-wire conductor cross-section (mm²)) | MinMMCrossSection | certified |
AAQ534 / AAQ533 /
AAQ532 / AAS444 (Wiring / Execution of the electric
connector / Conductor section (mm²) / total maximum of cross-section
(mm²)) | TotalMMCrossSection | certified |
AAQ534 / AAQ533 /
AAQ531 / AAC754 (Wiring / Execution of the electric
connector / Conductor parameters (AWG/KCMIL) / max. single-wire
conductor size (AWG/KCMIL)) | MaxAWGCrossSection | Alternativ MM |
AAQ534 / AAQ533 /
AAQ531 / AAC753 (Wiring / Execution of the electric
connector / Conductor parameters (AWG/KCMIL) / min. single-wire
conductor size (AWG/KCMIL)) | MinAWGCrossSection | Alternativ MM |
AAQ534 / AAQ533 /
AAQ531 / AAC384 (Wiring / Execution of the electric
connector / Conductor parameters (AWG/KCMIL) / total maximum of
cross-section (AWG/KCMIL)) | TotalAWGCrossSection | Alternativ MM |
AAQ534 / AAQ533 /
AAM734 (Wiring / Execution of the electric
connector / Electrical connection type) List: WAA065=
Screw connection ... When WAA068 (Plug-in connection), AAR874 (female
connector), AAR875 (male connector), BAA481 (Flat plug-in connector)
-> no CrossSection needed | Connection Type | premium |
AAQ534 /
AAN496 (Connection / direction of
connection) | Connection Direction | premium |
AAQ534 /
AAN403 (Wiring /
Number of executions of the electric connector) | MaxWireCount | premium |
AAQ672 /
AAN337 (Connection / Connector
identification) | PinIdentifier (see symbol) | certified |
AAQ675 / AAQ682 /
AAQ683 / AAQ373 / AAO676 (Part relation
/ Part relation variant / Associated part / Manufacturer /
Manufacturer product number) AAQ675 / AAQ682 /
AAQ683 / AAN350 (Part relation / Part relation variant /
Associated part / Part relation to the main device AAR847
(accessory), AAR849 (counterpart) | Attribute „Additional
Part“ | premium |
