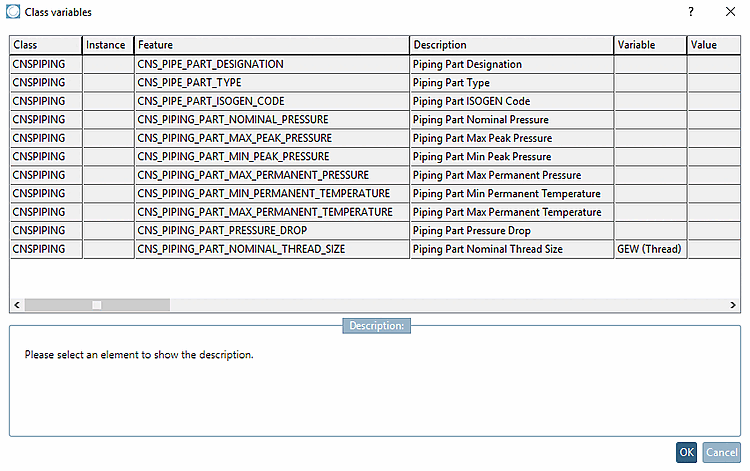

The following features are available in the CNSPIPING class:
Piping Part Designation: Type of component use (e.g. gas / water / fire protection)
Piping Part ISOGEN CODE: ISOGEN code for the component - 4 letters
Piping Part Nominal Pressure: Nominal operating pressure [Pa]
Piping Part Max Peak Pressure: Maximum short-term overpressure [Pa]
Piping Part Min Peak Pressure: Maximum short-term negative pressure [Pa]
Piping Part Max Permanent Pressure: Maximum permanent operating pressure [Pa]
Piping Part Min Permanent Temperature: Minimum operating temperature [Celsius]
Piping Part Max Permanent Temperature: Maximum operating temperature [Celsius]
Piping Part Pressure Drop: Pressure drop at the component [Pa]

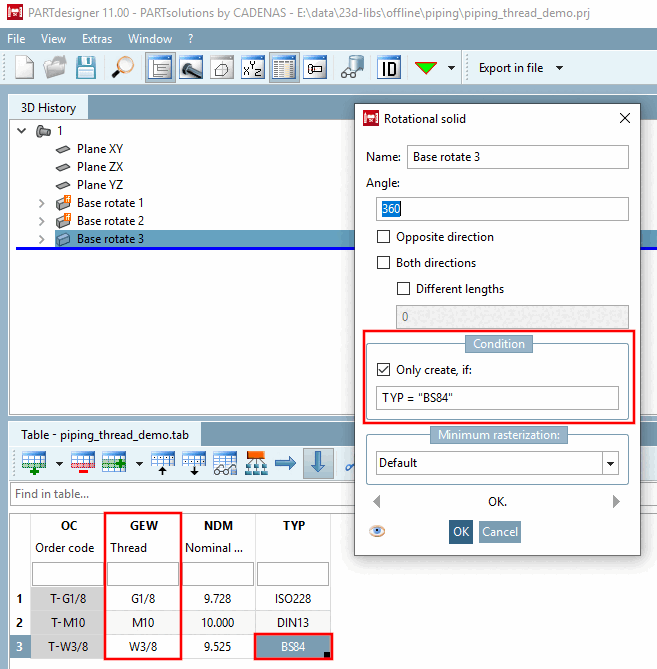

Piping Part Nominal Thread Size: If the corresponding table variable is specified (see Fig. „Class "CNSPIPING"“"GEW" as an example), the feature can be controlled line by line.
