4.16. Further settings in plinkcommon.cfg

4.16.8. Standard designation - Standard designation (short) - Adapt parts list designation / plinkcommon.cfg -> Block [PARTdataManager] -> Key "NB" "ShortNB" "LINA"

GUI: PARTlinkManager -> Extra [Extras] menu -> Configure dialog window -> Standard designation [Standard name] tab page

Important

	Important
Files names for the exported CAD document should be absolutely unique. The entire CAD administration, including definition of the naming rule, is carried out by default via the CAD configuration files under `$CADENAS_SETUP/if<cad name>.cfg` by default. Detailed information on CAD administration in general can be found under Chapter 2, PARTsolutions - CAD Integration - Administration . Detailed information on creating the file name in particular can be found under Section 2.2.7, “Set file name ("FileName" key) and pool path ("poolpath" key) ”. By default, NO entries are made on the Standard designation [Standard name] (NB), Standard designation (short) [Standard name (short)] (SHORTNB) and Parts list designation [BOM name] (LINA) tab pages! In PARTdataManager the standard NB is then displayed in the 3D view and the standard parts list designation is displayed in the table window and the setting under `$CADENAS_SETUP/if<cad name>.cfg` is used unchanged. Part name If entries are made on the Standard designation [Standard name], Standard designation (short) [Standard name (short)] and Parts list designation [BOM name] tab pages, these change the SR! This in turn influences the setting under `$CADENAS_SETUP/if<cad name>.cfg` and therefore the CAD file name!

Files names for the exported CAD document should be absolutely unique.

The entire CAD administration, including definition of the naming rule, is carried out by default via the CAD configuration files under $CADENAS_SETUP/if<cad name>.cfg by default.

Detailed information on CAD administration in general can be found under Chapter 2, PARTsolutions - CAD Integration - Administration . Detailed information on creating the file name in particular can be found under Section 2.2.7, “Set file name ("FileName" key) and pool path ("poolpath" key) ”.

By default, NO entries are made on the Standard designation [Standard name] (NB), Standard designation (short) [Standard name (short)] (SHORTNB) and Parts list designation [BOM name] (LINA) tab pages! In PARTdataManager the standard NB is then displayed in the 3D view and the standard parts list designation is displayed in the table window and the setting under $CADENAS_SETUP/if<cad name>.cfg is used unchanged.

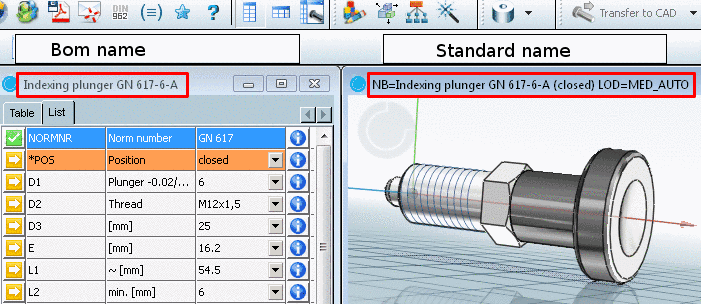

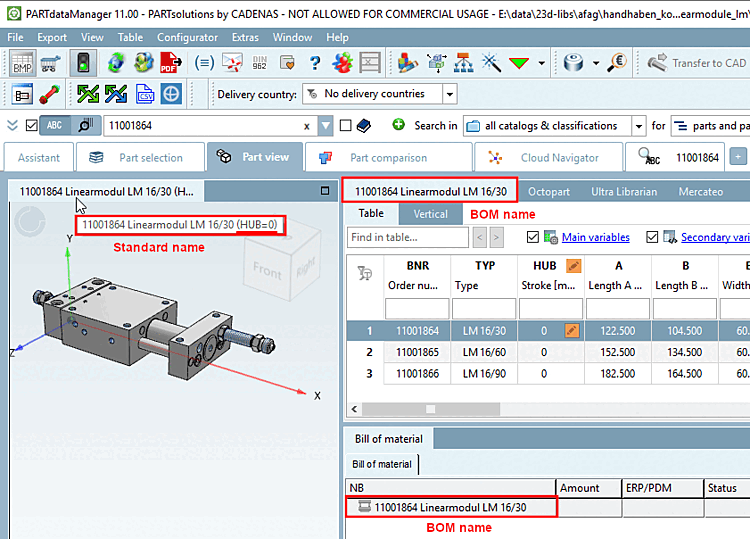

Part name

If entries are made on the Standard designation [Standard name], Standard designation (short) [Standard name (short)] and Parts list designation [BOM name] tab pages, these change the SR! This in turn influences the setting under $CADENAS_SETUP/if<cad name>.cfg and therefore the CAD file name!

You can find the setting options in PARTlinkManager as well as in PARTadmin. The syntax is identical.

PARTlinkManager -> Extras menu -> Configure ERP environment -> Standard designation [Standard name], standard designation (short) [Standard name (short)] and parts list designation [BOM name] tab page
Cross-role for all roles
PARTadmin -> Category Roles -> Tab page Standard designation [Standard name], Standard designation (short) [Standard name (short)] and Parts list designation [BOM name]
Role-specific
