3.4.6.2.1. Inventor: "Replace" and "Partial Search" require preselected elements

Functions such as Replace [Replace] and Partial Search [Partial search] now work exclusively with elements that have already been preselected in Inventor. If no preselection exists, a corresponding error message is displayed.

Example Replace:

If you select " Replace with Selected Component," the process proceeds as usual; otherwise, a corresponding error message appears. For details on the Replace function, see Section 3.5.6, “ Replace ”.

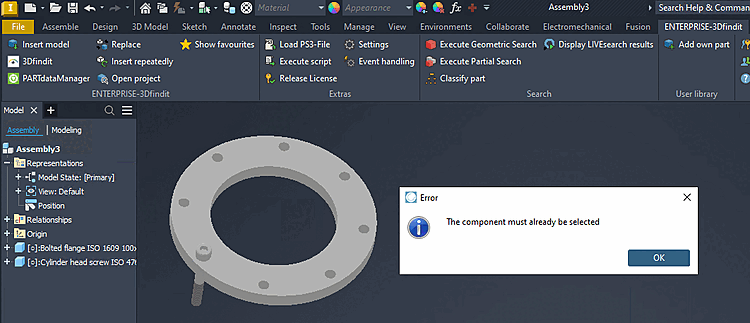

Error message: "The component must already be selected"

Error message: "The component must already be selected"

Example Partial Search [Partial search]:

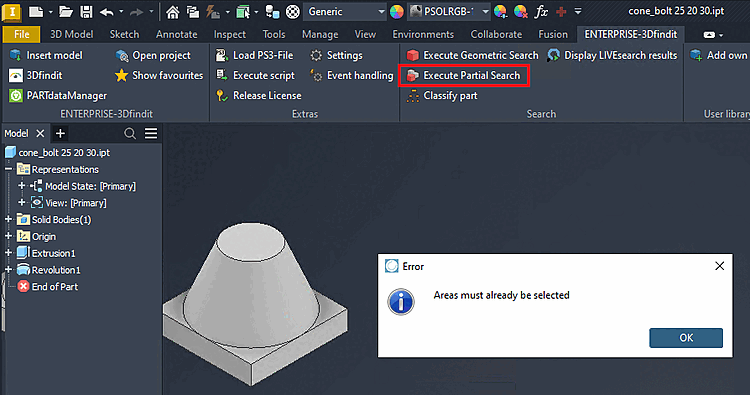

  1. If no feature is preselected in Partial Search [Partial search], an error message appears.

  2. To preselect faces or edges for this function, use SHIFT + right-click in Inventor. Enable "Select Faces and Edges."

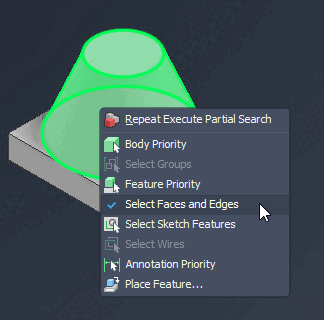

    Context menu command "Select Faces and Edges"

    Context menu command "Select Faces and Edges"

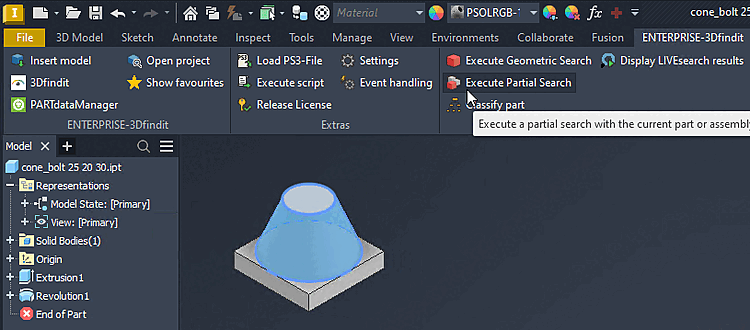

  3. After that, you can select a face or edge and launch the Partial Search [Partial search].

    For details on partial searches [Partial search], see " Section 3.5.12, “ Perform a partial search ”."
