7.16.5. Annotation

Type: NOTATION [ANNOTATION]

Using this type you can place an annotation at a certain point.

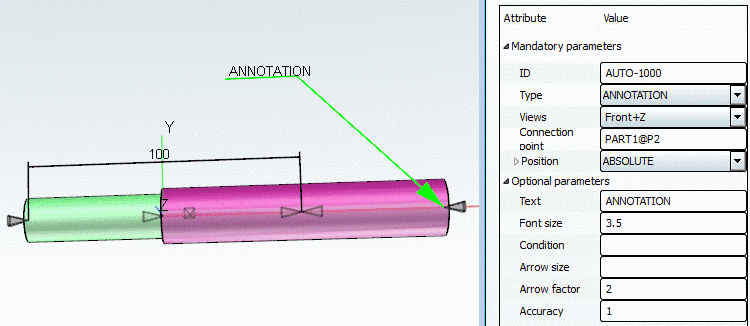

The arrow is drawn to the specified connection point. The lower left position of the annotation is determined via "Position [Position] " in relation to the zero point of the coordinate system.

The arrow is drawn to the specified connection point. The lower left position of the annotation is determined via "Position [Position] " in relation to the zero point of the coordinate system.

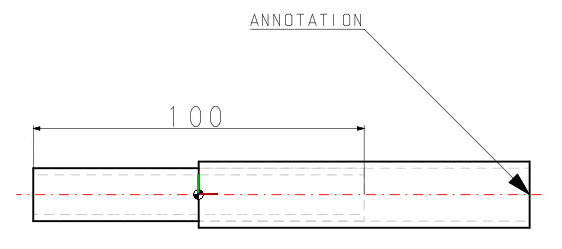

Notation in 2D derivation

Notation in 2D derivation
