The Variable structure window has received some improvements.

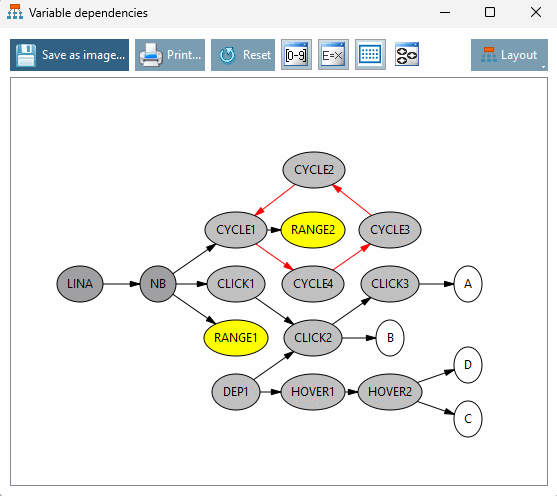

The displayed Structure can now be used as an image with the file format *.png on computer. Alternatively, it is possible to use the entire structure or just the displayed part directly to the printer. This will open the Printer Properties window of Windows.

The view of the variable dependencies can be changed directly using the buttons Show value range, Show characteristic algorithms, Show variables with fixed values, Show variables without dependencies and the layout.

It is now possible to find a variable via a context menu (right-click anywhere).

The visual representation of the type of dependency has also been improved.

You can find more detailed information on the variable structure under Section 7.12.7, “ Show variable dependencies ” in eCATALOG 3Dfindit.
