In PARTproject a new option has been added in the settings [Settings] under General.

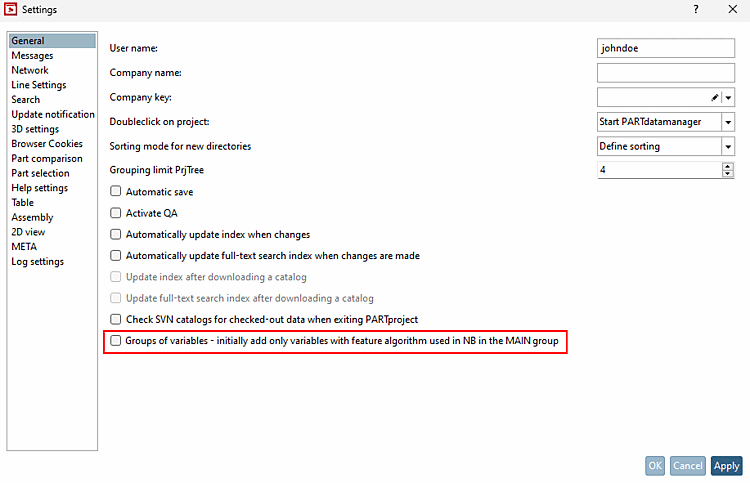

Settings window with the new option

If you activate the checkbox, the system checks whether the variable groups are empty when you open the Variable groups [Groups of variables] dialog for the first time. If this is the case, the groups are automatically created on the basis of the standard designation. The variables entered in the Variable with order number and Variable with type code lines are also automatically transferred to the MAIN group.

Variable with order number & variable with type code

Further information on this can be found in the chapter Section 5.9.2.3.3, “ Variable groups - columns (variables) visible / hidden ” in eCATALOG 3Dfindit.
