1.3.1.3.1.13. Change connection points with Revit classification to those with CNS classification
Prev  Next
1.3.1.3.1.13. Change connection points with Revit classification to those with CNS classification

Revit connection points (rvt_cp) will no longer be used in future.

The Move RVT_CP to CNS_CP_PLACE_PC function replaces Revit connection points with CNS connection points.

[Important]Important

The orientation and position of the connection point are not changed.

  1. Execute the context menu command.

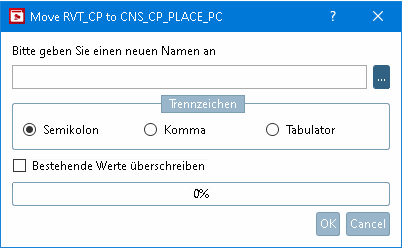

    -> The dialog box of the same name opens.

  2. Enter a name for the CSV file via .. . to enter a name for the CSV file and activate the Overwrite existing values option if necessary.

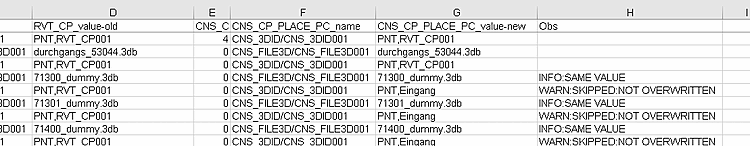

  3. Open the CSV file (e.g. in Excel).

    A: PRJ.File
B: RVT_CP_instance – Instanz des alten RVT_CP
C: RVT_CP_name – Name des alten RVT_CP
D: RVT_CP_value-old - Wert des alten RVT_CP
E: CNS_CP_PLACE_PC_instance – Instanz des neuen CNS_CP_PLACE_PC
F: CNS_CP_PLACE_PC_name – Name des neuen CNS_CP_PLACE_PC
G: CNS_CP_PLACE_PC_value-new – Wert des neuen CNS_CP_PLACE_PC
H: Kommentare

    Column "H": the following comments are possible:

    • INFO:SAME VALUE - Value for CNS_CP_PLACE_PC is available, identical to old RVT_CP

    • WARN:OVERWRITTEN - value for CNS_CP_PLACE_PC exists, not identical to old RVT_CP, CNS_CP_PLACE_PC value has been overwritten

    • WARN:SKIPPED:NOT OVERWRITTEN - value for CNS_CP_PLACE_PC exists, not identical to old RVT_CP, CNS_CP_PLACE_PC value was not overwritten (skipped - value not copied)

    The last 2 are related to the setting Overwrite existing values:
