5.9.4.1.  Dimensioning views

[Note]Note

The entry of dimensioning views [Dimensioning views] is optional. These are displayed in the PARTdataManager under Technical views.

Optionally, you can use the Variants dialog area if you want to assign specific dimensioning views [Dimensioning views] to different variable values (table rows).

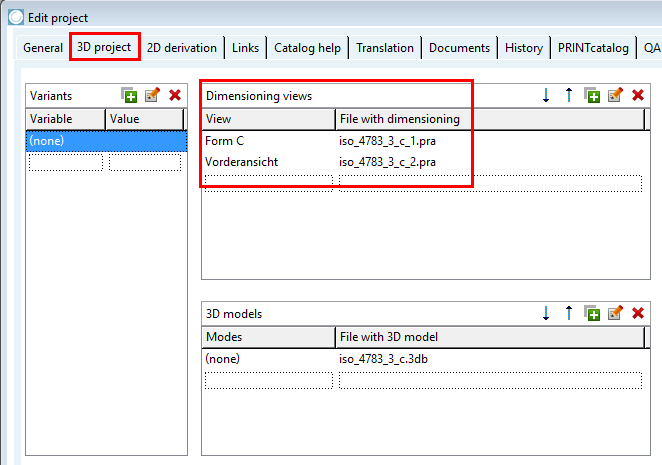

  1. In the View column, use the arrow to open the list field and select a view [View] or enter a name yourself.

  2. Open the list field in the File with dimensions [File with dimensioning] column using the arrow and select the desired file. This must be stored in the project file.

    Allowed file types are .pra, .bmp, .tif.

    [Note]Note

    DWG and DXF files can be imported and converted to pra format. For detailed information, see Section 5.11.2, “ Create and import/convert dimensioning views externally ”.

  3. With you can create any number of new views, optionally.

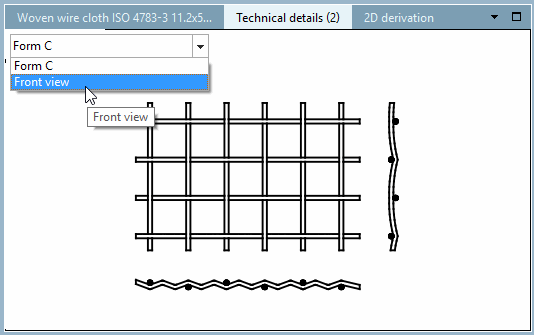

  4. View the result in the PARTdataManager in the Technical specifications [Technical details] docking window.
