5.12.11.3. Classification according to IEC Code 81346_2

Classifying according to EN 81346-2 is mandatory.

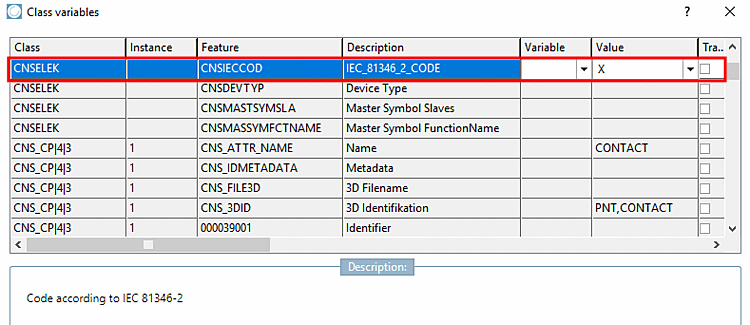

Set the corresponding value under class CNSELEK-> feature CNSIECCODwith the description IEC_81346_2_CODE.

EN 81346-2 defines the code letters of the main classes for the purpose and task of objects. For details, see https://de.wikipedia.org/wiki/EN_81346-> EN 81346-2: Classification of objects and coding of classes (IEC 81346-2:2009)

Excerpt from the table of main classes (A1):

Code letter Purpose or task
ATwo or several purposes or tasks (Note: This class is only intended for objects without main purpose)
BChange signal variable (physical property, state or result) in a signal for processing
CStorage of material, energy or information
......
XObject connection

Examples:

Cable = W | Connector = X | Terminal = X | Display = P

Result in E3

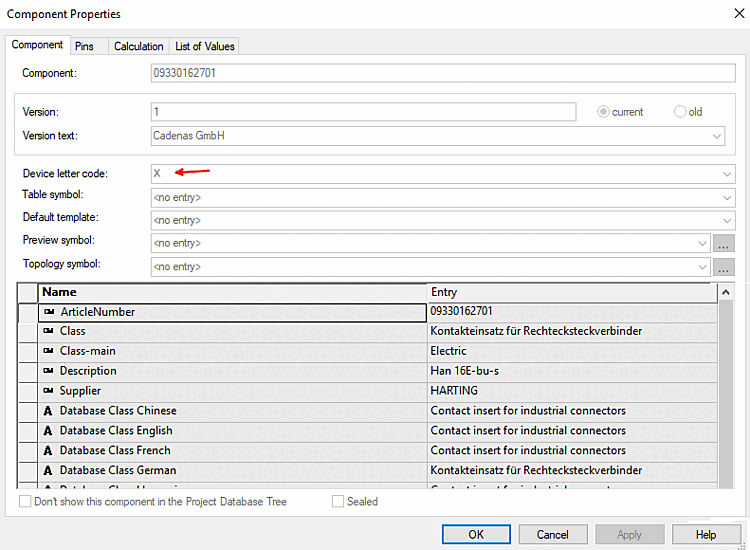

Component Properties - Device letter code and other properties

Component Properties - Device letter code and other properties
