1.3.6.3.3.  PSOL Projektverknüpfung hinzufügen

You can add link projects from a PARTsolutions catalog (e.g. standards catalog) to your own catalog. These are then available without being a direct part of your catalog.

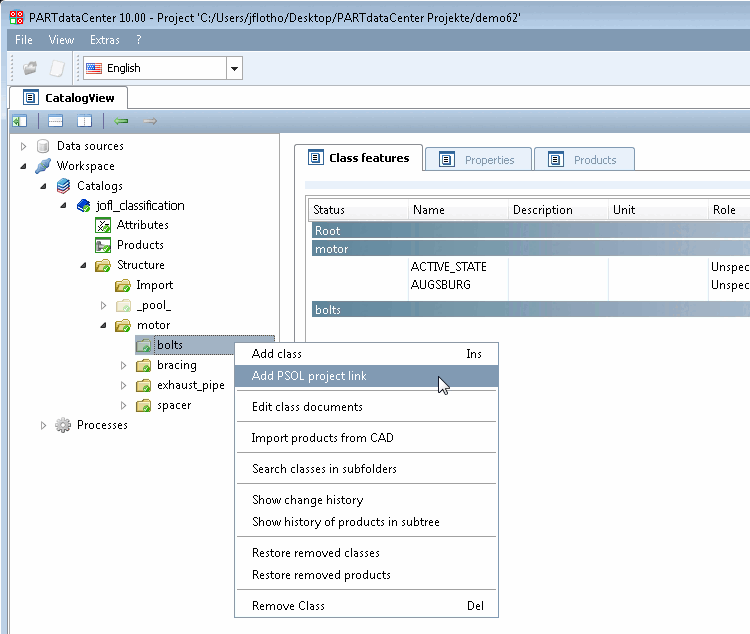

  1. Click on the context menu command Add PSOL project link.

    -> The Project selection [Select Project] dialog box opens, which displays the complete PARTsolutions catalog structure.

    [Note]Note

    The content of $CADENAS_DATA is displayed. The PARTsolutions catalog to be linked to does not have to be imported into the PARTwarehouse store.

  2. For example, select a specific project in the standards catalog and confirm with OK.

    -> The linked PARTsolutions project is displayed with project icon . Before committing a blue plus sign is shown inside the icon, after committing a green checkmark.

    Before "Commit"

    Before "Commit"

    After "Commit"

    After "Commit"
