Validated electrical parts contain important information like mounting points, symbols, alternative views, technical parameters, classifications, part numbers, etc.

The Create class system for filters plugin can be used to analyze a catalog in a batch run with regard to the requirements for certification.

With V12.6, it is possible to load generated reports directly into the Extended ECLASS Validation Report [Extended ECLASS validation report] dialog without regenerating them, which saves a considerable amount of time.

To do this, open the Create class system for filter [Create class system for filters] dialog under Report name, select the desired report and click Load.

"Create class system for filter [Create class system for filters] " dialog

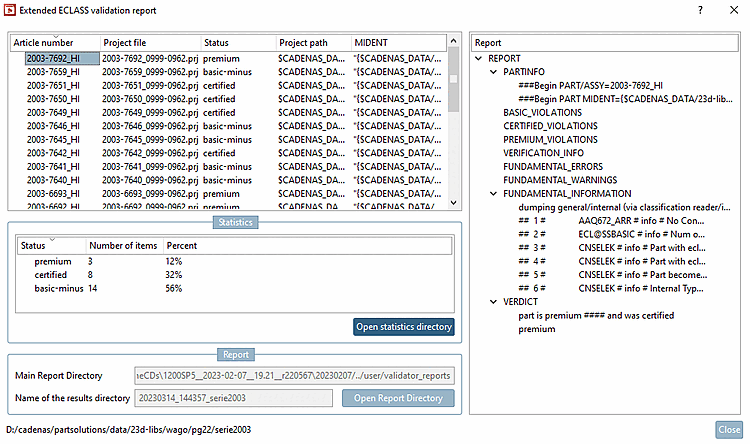

-> The Extended ECLASS Validation Report [Extended ECLASS validation report] dialog opens with the desired data.

For details, see Section 5.12.9.27.5, “ Create class system for filters (plugin) ” in eCATALOG 3Dfindit.
