1.6.1.2.1.2.  Manage fonts

With V12.6, fonts can be managed centrally at catalog level, similar to render materials, and then used at feature level (e.g. for the Text Feature [see Section 7.6.2.13, “ Text Feature ” in eCATALOG 3Dfindit]).

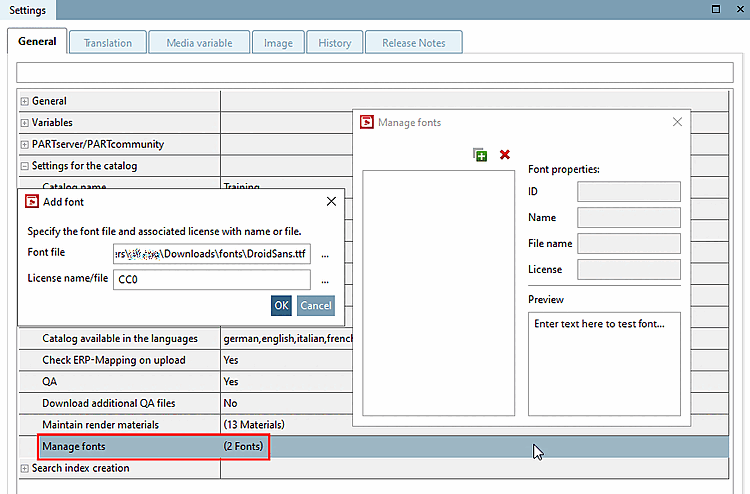

  1. Select the desired catalog and then click in PARTproject under Settings -> General tab -> Catalog settings [Settings for the catalog] -> Manage fonts on the ... button on the right.

    -> The same-named dialog is opened.

  2. Click on the plus sign.

    -> The Add font dialog box opens.

  3. Specify the font file [Font file] and license name/file [License name/file] and confirm with OK.

    Normally fonts are licensed so that you either have to state the corresponding license file or at least the license's name. Of course only those fonts may be used where its license allows this.
