4.9.6.  Adjust table values -> Set bitmap with condition (PDataMgr only) / plinkcommon.cfg -> Block [BMPMAPPING_<column_name>] -> Key "BMPCOND<number>"

Use the Set bitmap with condition [Set bitmap with condition (PDataMgr only)] option (PDataMgr only) [Set bitmap with condition (PDataMgr only)] to set a condition for a display value and map an image to it.

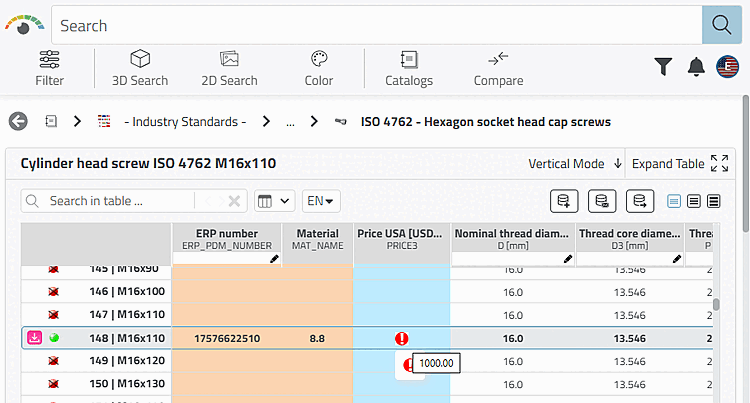

The setting applies to PARTdataManager and 3Dfindit in equal measure.

Setting in configuration file $CADENAS_SETUP/plinkcommon.cfg:

Block [BMPMAPPING_<variable name>], key BMPCOND<NUMBER>, first value with condition for the display value, second value with image path.

Example:

[BMPMAPPING_PRICE4]
BMPCOND0="PRICE4.GT.0.0","$CADENAS_SETUP/bitmaps/linkdbdemo/ecat/germany.bmp"

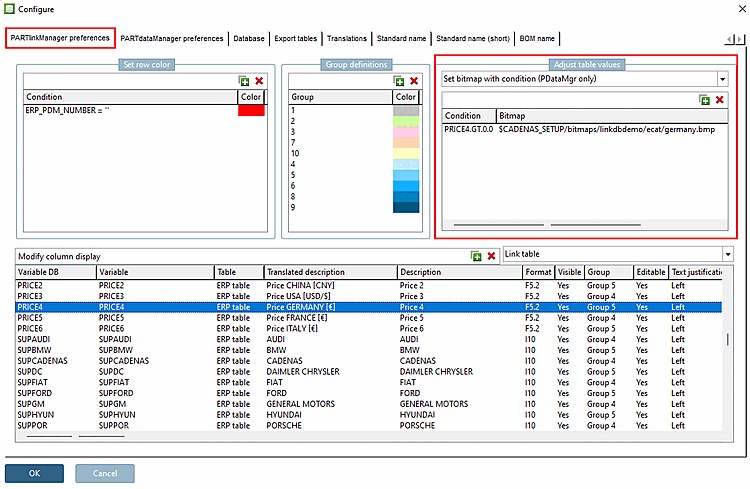

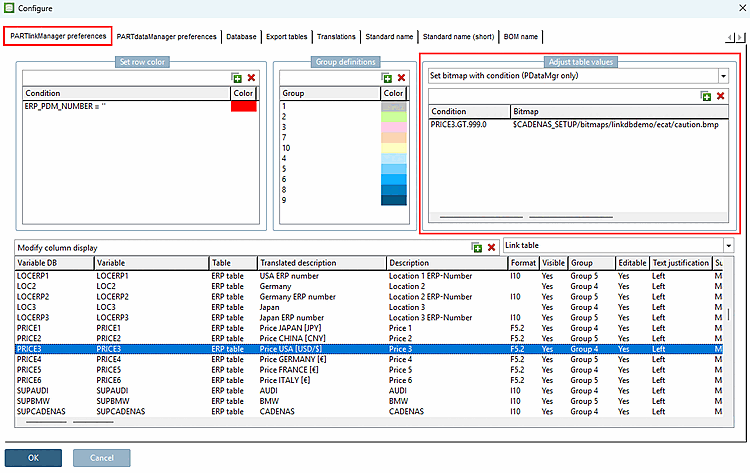

Setting in user interface under PARTlinkManager -> Extras menu -> Configure dialog window -> PARTlinkManager settings [PARTlinkManager preferences] tab page -> Adjust table values -> Set bitmap with condition (only PDataMgr) [Set bitmap with condition (PDataMgr only)]

Example "PRICE4" column of PLDBDEMO:

Condition Bitmap
PRICE4.GT.0.0Bitmap path

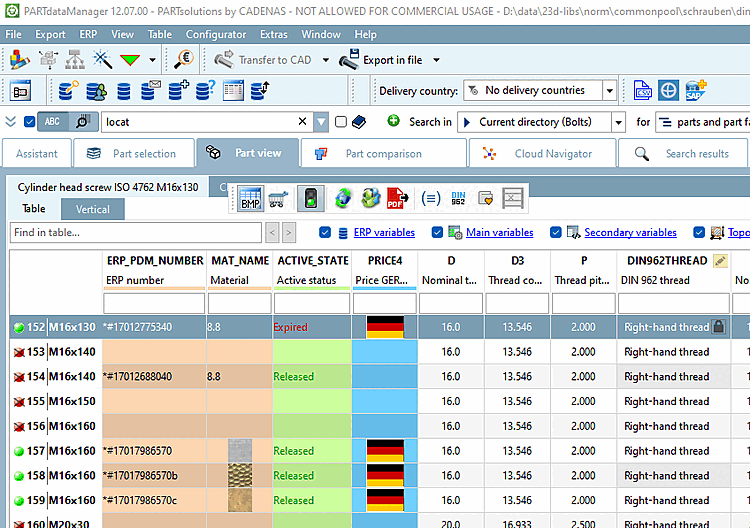

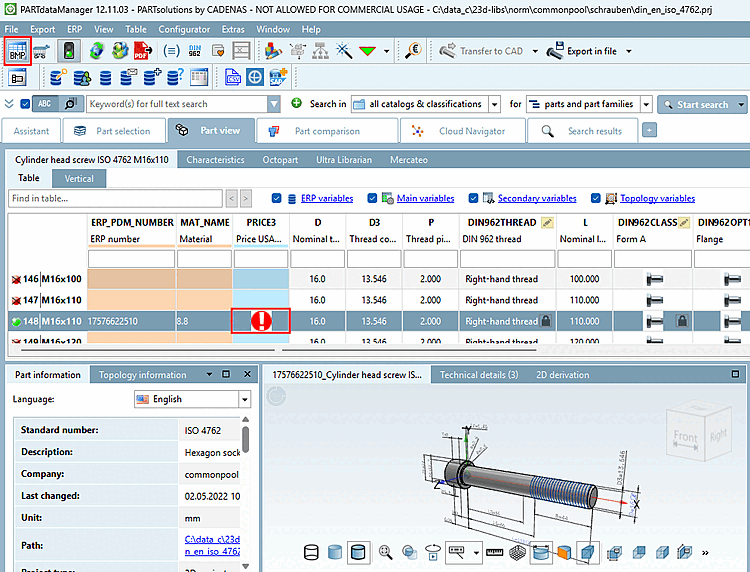

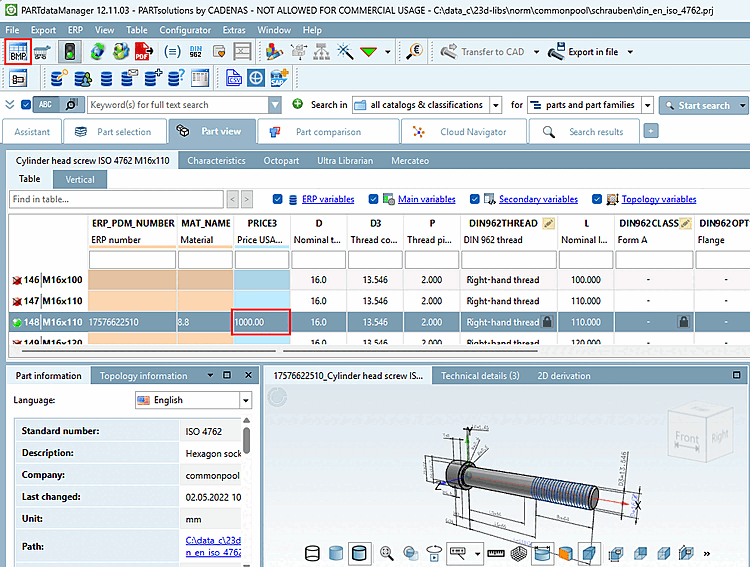

Display in PARTdataManager
