4.9. Table layout for PARTdataManager/3Dfindit and (PARTlinkManager)

4.9.5. Adjust table values > Set bitmap (PDataMgr only) / plinkcommon.cfg -> Block [BMPMAPPING_<column_name>] - Key "BMPCODE<number>"

Use the Set bitmap [Set bitmap (PDataMgr only)] option (PDataMgr only) [Set bitmap (PDataMgr only)] to set internal values and map any image to them.

The setting applies to PARTdataManager and 3Dfindit in equal measure.

Setting in the configuration file $CADENAS_SETUP/plinkcommon.cfg:

Block [BMPMAPPING_<variable name>], key BMPCODE<NUMBER>, first value with displayed term, second value with image path

	Note
The mapping to the linked image only works if the spelling (lower and upper case) exactly corresponds to a default value from the listing or a free input. Match the display terms in the list (see Section 2.2.9.2, “Material mapping with ERP integration ”) with the terms entered under Adjust table values.

Note

The mapping to the linked image only works if the spelling (lower and upper case) exactly corresponds to a default value from the listing or a free input.

Match the display terms in the list (see Section 2.2.9.2, “Material mapping with ERP integration ”) with the terms entered under Adjust table values.

Example:

[BMPMAPPING_MAT_NAME]
BMPCODE0="BRASS","$CADENAS_SETUP/bitmaps/linkdbdemo/materials/brass.bmp"
BMPCODE1="COPPER","$CADENAS_SETUP/bitmaps/linkdbdemo/materials/copper.bmp"
BMPCODE2="GLAS","$CADENAS_SETUP/bitmaps/linkdbdemo/materials/glas.bmp"

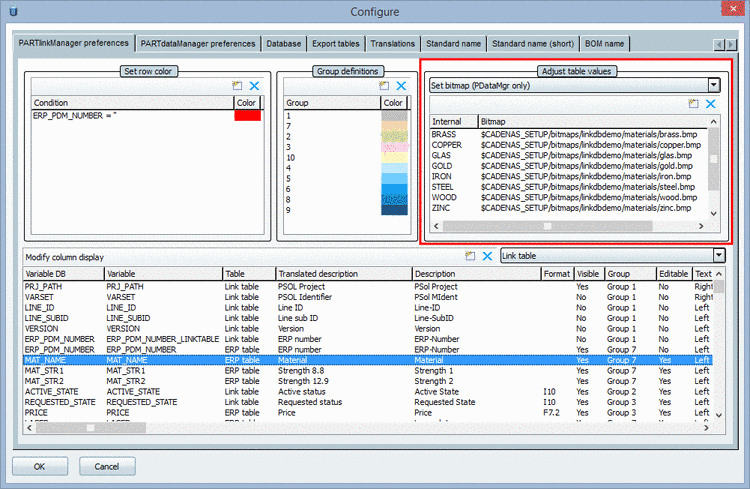

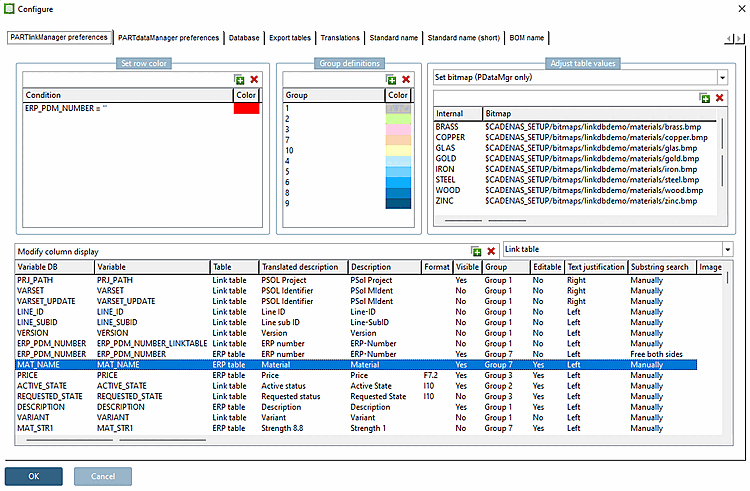

Setting in user interface under PARTlinkManager -> Extras menu -> Configure dialog -> PARTlinkManager settings [PARTlinkManager preferences] tab page -> Adjust table values -> Set bitmap (only PDataMgr) [Set bitmap (PDataMgr only)]

Internal	Bitmap
Material name	Path to bmp

Display in PARTdataManager

Images are displayed if the function Show graphics in table function has been activated.

Enabled

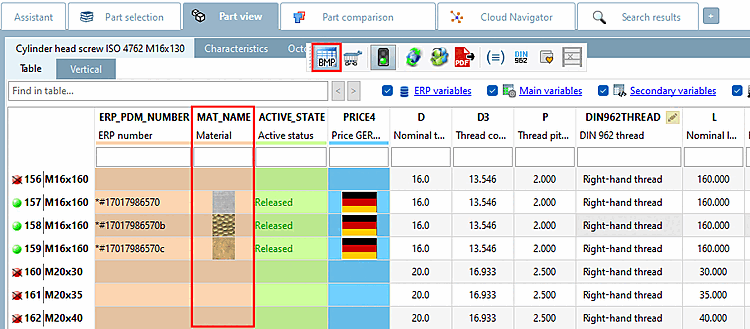

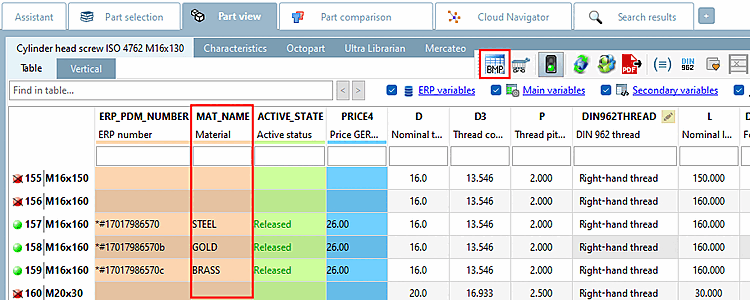

Example: Material in the form of a picture
Disabled

Example: Material in text form

Display in PARTlinkManager

	Note

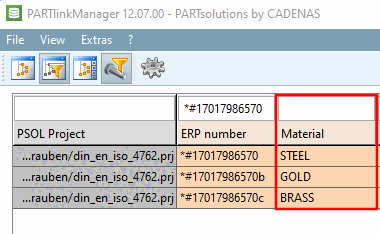

Make sure that for all used materials there is a definition available. Example: BMPCODE0= "BRASS ", "C:\ProgramData\cadenas\partsolutions\setup/bitmaps/linkdbdemo/materials/brass.bmp"

Note

Make sure that for all used materials there is a definition available.

Example:

BMPCODE0= "BRASS ", "C:\ProgramData\cadenas\partsolutions\setup/bitmaps/linkdbdemo/materials/brass.bmp"

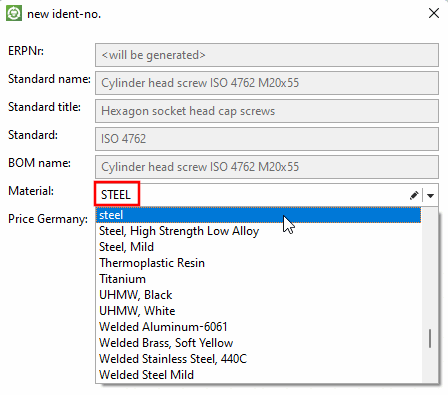

The values are defined in erpcustom.cfg -> block "USERDIALOG" -> key "Material". You can find details on this at Section 4.11, “ Design "New ident number " dialog box - erpcustom.cfg -> Block [USERDIALOG] ”.

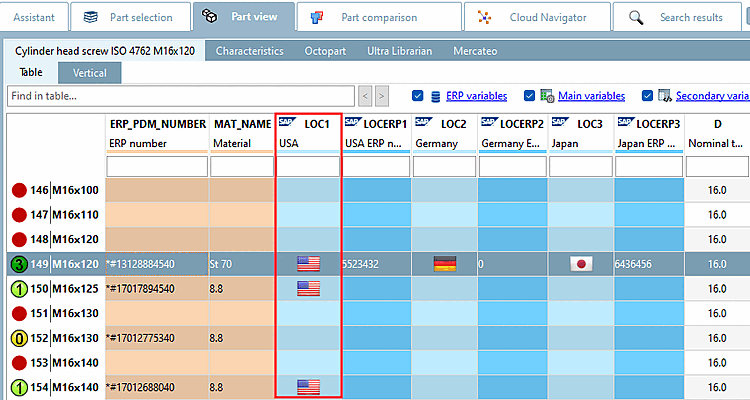

Another example (See PLDBDEMO database -> Role "LOC1")

[BMPMAPPING_LOC1]
BMPCODE0="x","$CADENAS_SETUP/bitmaps/linkdbdemo/department/usa.png"

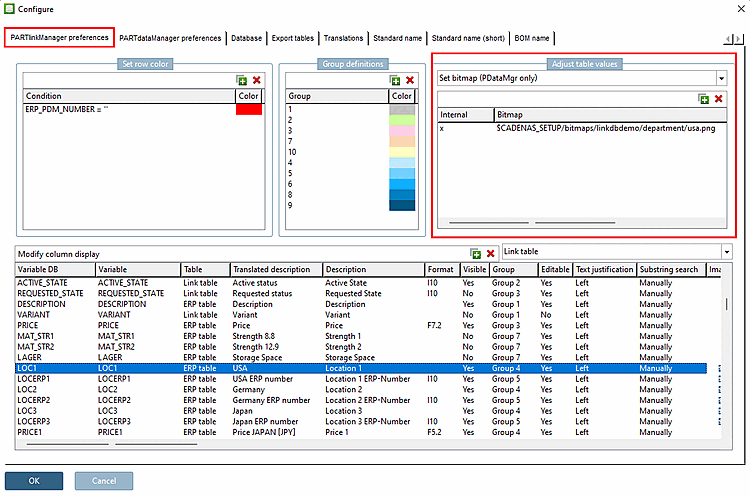

User interface: PARTlinkManager -> Extras menu -> Configure dialog window -> PARTlinkManager settings [PARTlinkManager preferences] tab page -> Adjust table values -> Set bitmap (PDataMgr only)

Internal	Bitmap
x	Path to bmp

Result in PARTdataManager:

If the function Show graphics in table function is deactivated, the internal value (here "x") is displayed in the corresponding line.

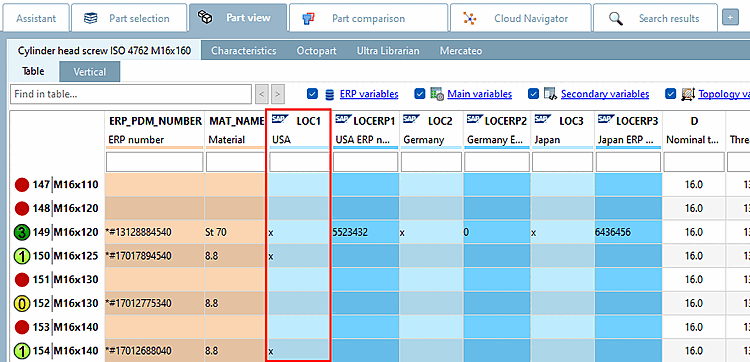

Display of internal value

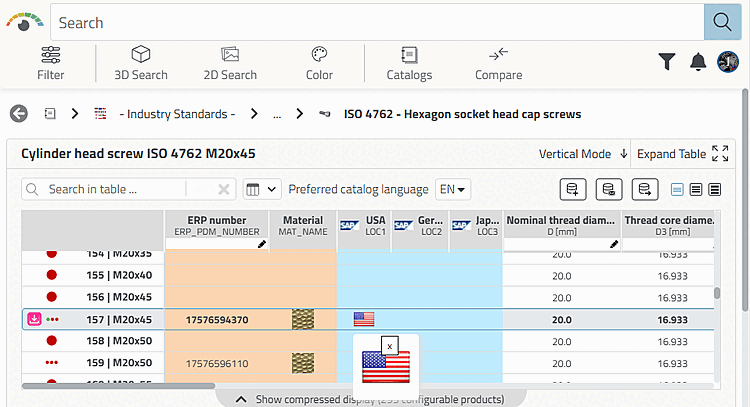

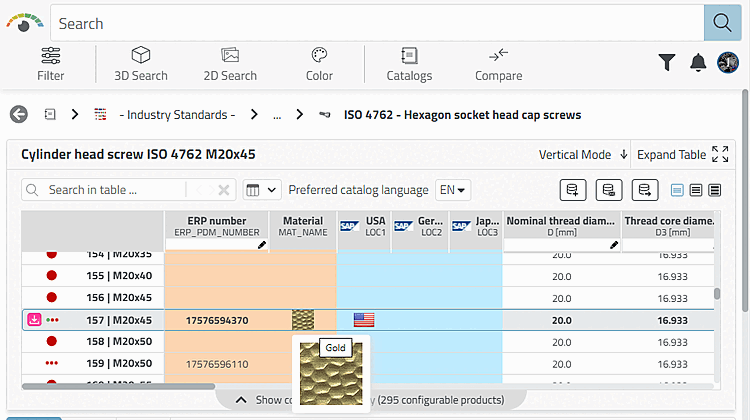

If the function Show graphics in table function is activated, the image is displayed in the corresponding row.

Display of bitmap
