1.4.2.  CAD integration

You can easily register and deregister interfaces in the CAD integration category.

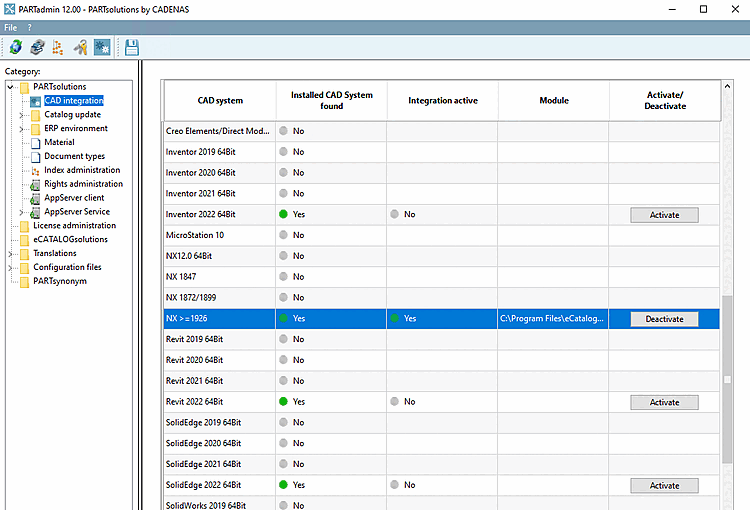

CAD integration " category

CAD integration " category

Select the CAD integration category in PARTadmin on the left. You must be in administrator mode for this[6]otherwise a corresponding message appears.

-> Now on the right, a matrix with available CAD systems is displayed, where the activation/deactivation service is available in the user interface.

  • CAD system: List of all CAD systems for which activation/deactivation can be carried out via the user interface.[7]

  • Installed CAD found [Installed CAD System found]: If "Yes", the relevant CAD is installed.

  • Integration active: Yes/No

  • Activate/deactivate [Deactivate]: Click on the button to activate or deactivate the integration.

    [Note]Note

    Activation adds a line at NXxxx\UGII\menus\ in the custom_dirs.dat file. Modifications can optionally be made here by the customer.

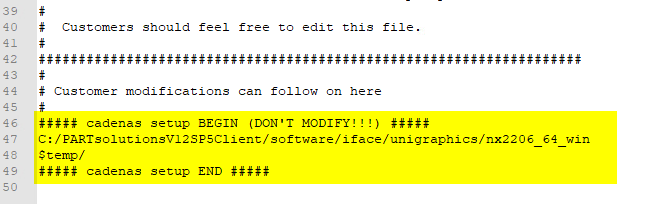

    Example: custom_dirs.dat

    Example: custom_dirs.dat



[6] If necessary, click on the button (Restarts the program with administrator rights [Restart the program with administrative privileges] ).

[7] for an offline CD of the packaged interfaces
