3.1.13.4.8.1. HTML

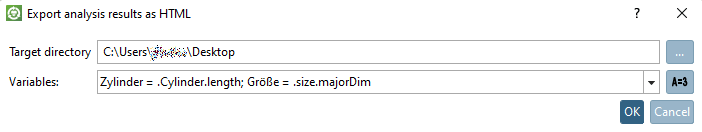

If HTML is selected, the Export analysis results as HTML dialog box opens.

  1. Select the target directory [Target directory].

  2. Specify the variables [Variables] or topological attributes whose values are also to be displayed in the report.

    Example result:

    The figure shows the added ERP number.

    The figure shows the added ERP number.

    [Tip]Tip

    Already used settings are saved.

    In the list field, select the variable combination to be used in the report. When moving the cursor over an entry, all variables are shown with their description in a tooltip.

    Otherwise determine other variables and attributes.

    Click on the button button opens the User-defined variables [Custom variables] dialog box.

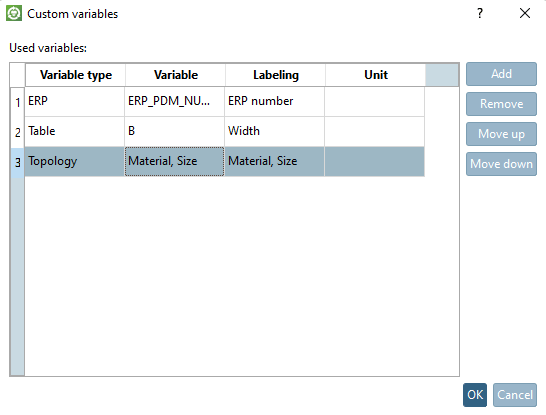

    Custom variables

    Custom variables

    Here, you can specify variables and topological attributes, which shall be displayed at each part in the report, in addition.

    First click on Add to insert a new line.

    • Variable type:

      Double-click in the line under Variable type to open a list box with the following selection options:

      • ERP

      • Table

      • Topology

    • Variable:

      Via double-click into the line under "Variable" a list field with the following options opens:

      • Input options for variable type ERP:

        When selecting "ERP" the ERP variables of the table are read and shown in a list. You can also enter the value yourself.

      • Input options for variable type Table:

        When selecting "Table" the table variables of the search directory (search source) are read and shown in a list. You can also enter the value yourself.

      • Input options for variable type Topology:

        First, the term "Topology" is displayed in the cell. Click on it.

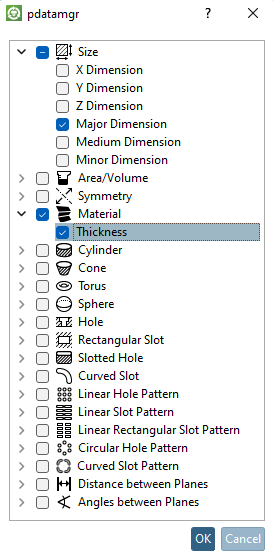

        -> Now a dialog showing all topological features is opened.

        At desired features, check the option.

    • Labeling:

      Enter a labeling by clicking on it. This will be displayed in the report later.

    • Unit:

      Optionally you can state a unit.

      If the variable has no own unit, the entered unit is displayed.

      If the variable has a unit, the value is converted. (Currently conversion is only possible at the type "Variable".)

      Example:

      The diameter in the table is given in inches. You have stated mm as unit. -> The value is automatically converted from inches to mm.

  3. Confirm with OK.

    -> The HTML export is performed.

    Open index.html in the specified directory.

    -> The report is opened.

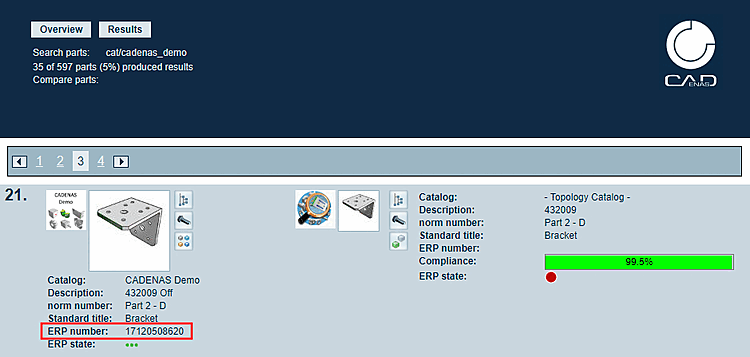

    Here, the variable ERP_PDM_NUMBER has been added exemplarily.

    Here, the variable ERP_PDM_NUMBER has been added exemplarily.

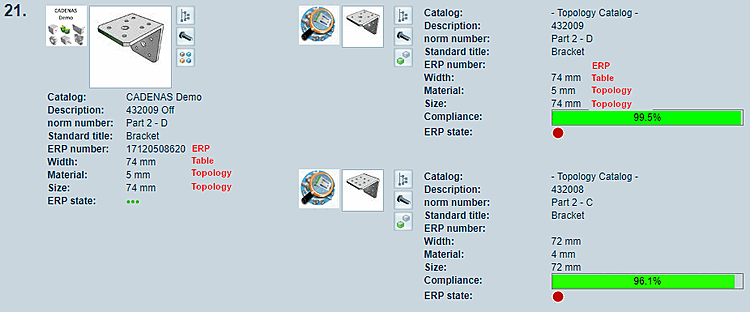

    Here, the variable ERP_PDM_NUMBER, table variable for width and topological attributes for Size and Material thickness have been added to the analysis result.

    Here, the variable ERP_PDM_NUMBER, table variable for width and topological attributes for Size and Material thickness have been added to the analysis result.

    [Note]Note

    The buttons such as Open, Load as 1st part [Load as first part], Compare with search part [Compare to search-part], etc. have no function.
