If CSV is selected, the Export CSV dialog box opens.
Make the settings and then confirm with .
Separator: Select the desired separator [Separator] from the list box.
Text identifier [Sign of text identification]: Select the desired one from the list box.
Ignore result groups that occur more than once [Ignore duplicate clusters]:

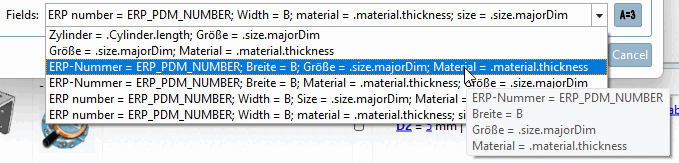

Fields: Under Fields, specify the variables [Variables] or topology attributes whose values are to be included in the CSV file.
Otherwise determine other variables and attributes.
Click on the button

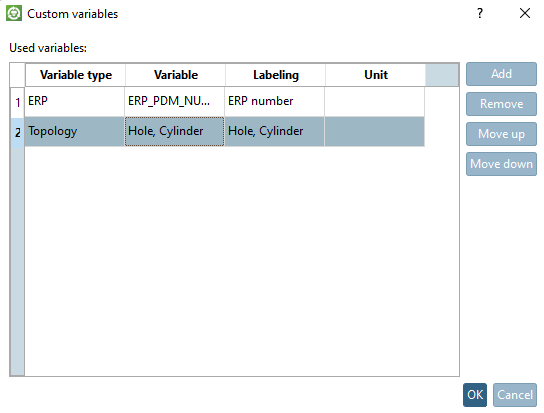

button opens the User-defined variables [Custom variables] dialog box.
Here, you can specify variables which later will be displayed in the report at each part additionally.
First click on to insert a new line.

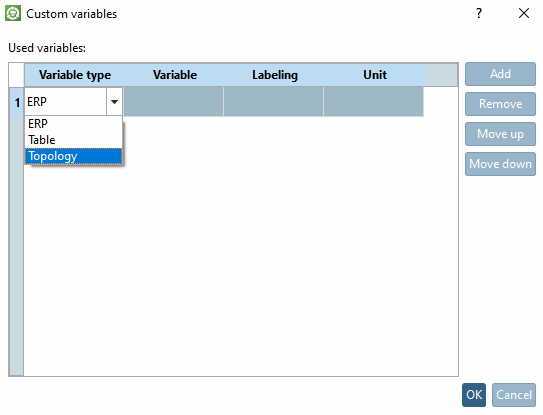

Double-click in the line under Variable type to open a list box with the following selection options:
Via double-click into the line under "Variable" a list field with the following options opens:
Input options for variable type ERP:
When selecting "ERP" the ERP variables of the table are read and shown in a list. You can also enter the value yourself.
Input options for variable type Table:
When selecting "Table" the table variables of the search directory (search source) are read and shown in a list. You can also enter the value yourself.
Input options for variable type Topology: First, the term "Topology" is displayed in the cell. Click on it.
-> Now a dialog showing all topological features is opened.
At desired features, check the option.

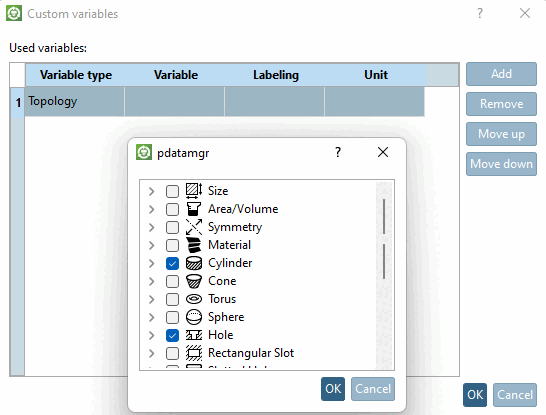

In this example, the topological attributes "Cylinder" and "Hole" are activated. (Also sub-attributes are possible.)
Enter a labeling by clicking on it. This will be displayed in the report later.
Optionally you can state a unit.
If the variable has no own unit, the entered unit is displayed.
If the variable has a unit, the value is converted. (Currently conversion is only possible at the type "Variable".)
The diameter in the table is given in inches. You have stated mm as unit. -> The value is automatically converted from inches to mm.
Only export parts with the following status [Export only parts with the following states]: This option is only relevant for duplicate analysis. The status can be marked there. See Section 3.1.13.2, “ Duplicate Analysis ”.
Export status [Export state]: This option is only relevant for duplicate analysis. The status can be marked there. See Section 3.1.13.2, “ Duplicate Analysis ”.
Activate multithreading [Enable multithreading]: Possibly useful to speed up the process for large files if table variables are to be included in the CSV. Activation should have a positive effect, especially with SSDs and network drives.
![[Tip]](https://webapi.partcommunity.com/service/help/latest/pages/en/3dfindit/doc/images/tip.png)

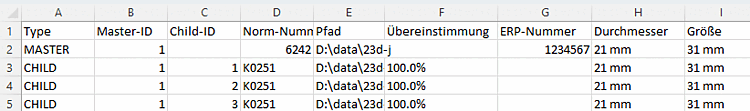

Example for CSV result table with standard variables and the variable types 'ERP' (Column G), 'Table' (column H) and 'Topology' with one feature (column I):

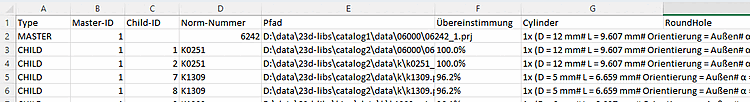

Example for CSV result table with standard variables and variable type "Topology" with two attributes (Cylinder and RoundHole):
The topology [Topology] type is followed by the desired topological attributes, in the example above for "Cylinder" and "RoundHole".
This is the syntax within a topological field:
Attributes within a feature separated by #
Exemplary excerpt from above figure:
1x (D = 33 mm# L = 5 mm# Orientierung = Außen# α = 360 °) | 1x (D = 19 mm
# L = 14.911 mm# Orientierung = Außen# α = 360 °) | 1x (D = 8 mm# L = 14.233 mm
# Orientierung = Außen# α = 360 °)
