8.4.10.  Technical view

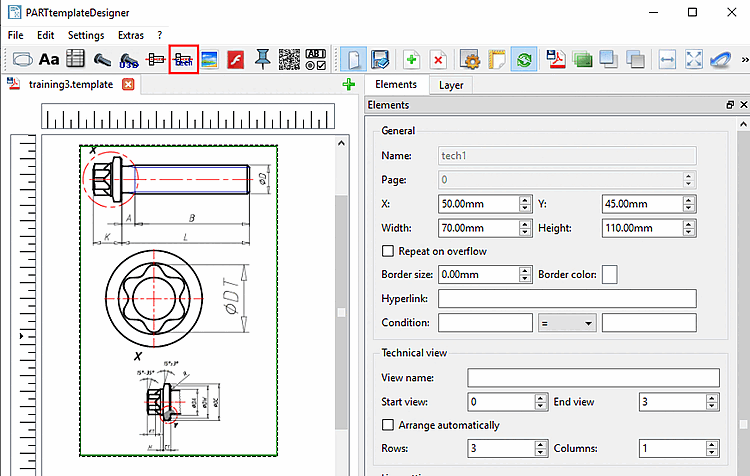

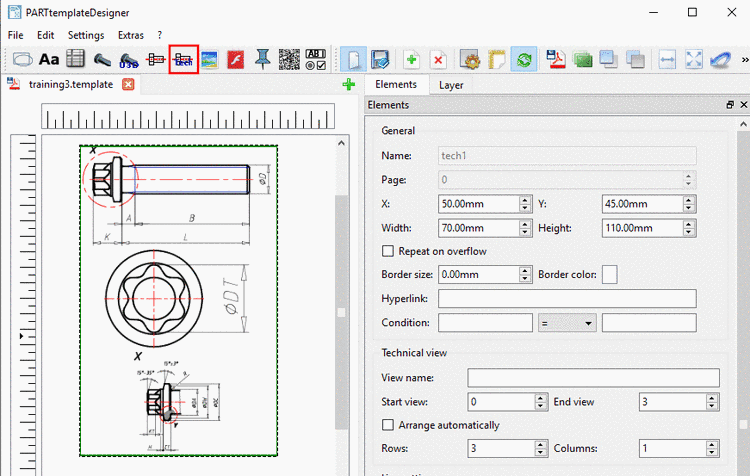

In this section you will find explanations of the setting options for Technical view .

  • General: See Section 8.4.2, “General settings”.

    [Note]Note

    You indirectly control the distance between the individual down conductors via the available width [Width] or height [Height] (see illustration above).

  • Technical view:

    • View Name [View name]:

      Declaring the view by its name is not recommended, because the name can be different at the single parts.

      Better declare the technical views as numeric listing.

      0,1,2,etc.

      [Note]Note

      The numbering starts with 0.

      [Note]Note

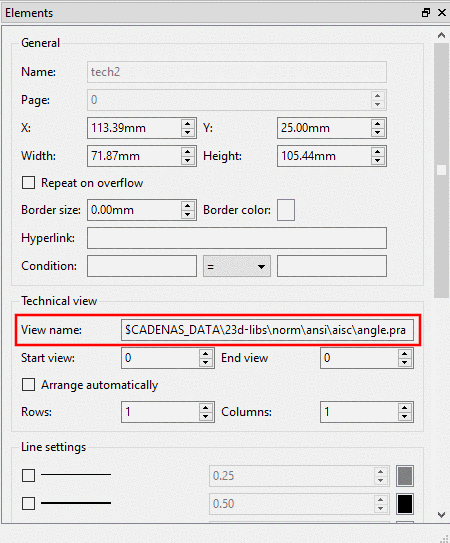

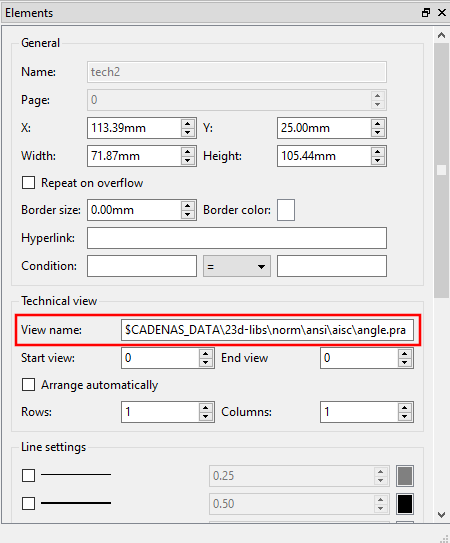

      For some assistants, technical previews (*.pra,*.2db, etc.) have to be added, which are not defined in the project. In this case directly enter the path.

    • Start view / End view:

      Alternatively, you can also specify an area. Select the value for End view large enough so that the technical views can be displayed in any case.

    • Arrange automatically:

      The automatic arrangement has the following systematics:

      • 1 view: 1 row, 1 column

      • 2 views: 1 row, 2 columns

      • 3 views: 2 rows, 2 columns

      • 4 views: 2 rows, 2 columns

      • 5 views 3 rows, 3 columns

      • etc.

      If the option is deactivated, the setting under Rows / Columns is used.

    • Rows / columns [Columns]: Specify the arrangement explicitly.
