7.9.3.7.3.  Create circle tangent to 2 elements (circle/line/arc)

Create circle tangent to 2 elements (circle/line/arc) [Create circle tangent to 2 elements (circle/line/arc)]

Create tangent circle at lines, arcs and circles.

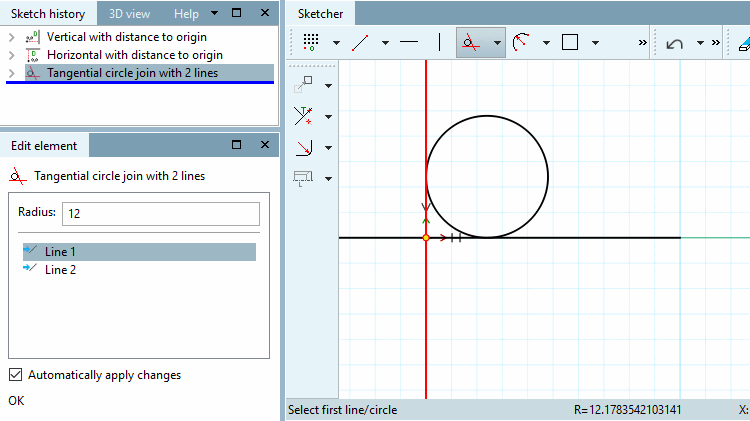

Example: Circle between coordinate axes

  1. Click first element being tangent to.

  2. Click second element being tangent to.

  3. Drag the circle with the cursor to the desired radius and fixate it by mouse click.

  4. If necessary, adjust the radius in the Edit element docking window.

Create circle tangent to 2 elements (circle/line/arc) [Create circle tangent to 2 elements (circle/line/arc)]

Create circle tangent to 2 elements (circle/line/arc) [Create circle tangent to 2 elements (circle/line/arc)]
