1.6.5.16.2.  Block [VARSEARCHCLSVARS]

The variables declared here are displayed in the Variable search [Variables search] dialog box. By default, CNSORDERNO is always available.

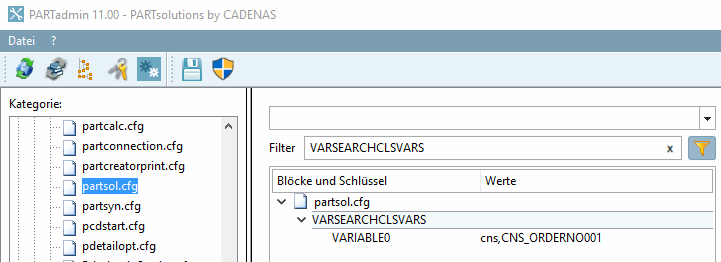

PARTadmin: Declaration of variables to be displayed

PARTadmin: Declaration of variables to be displayed

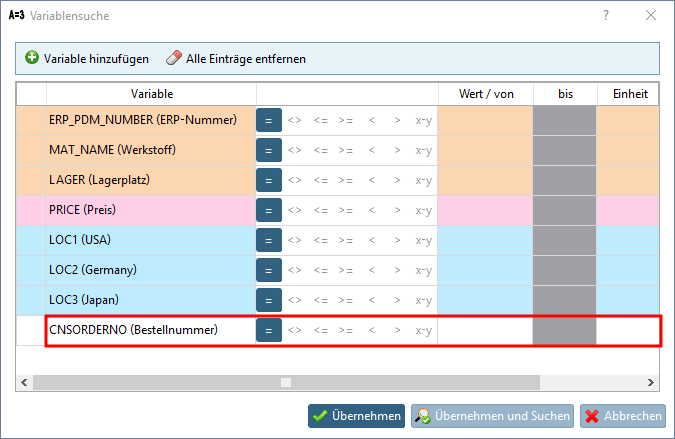

PARTdataManager variable search [Variables search] dialog box

PARTdataManager variable search [Variables search] dialog box

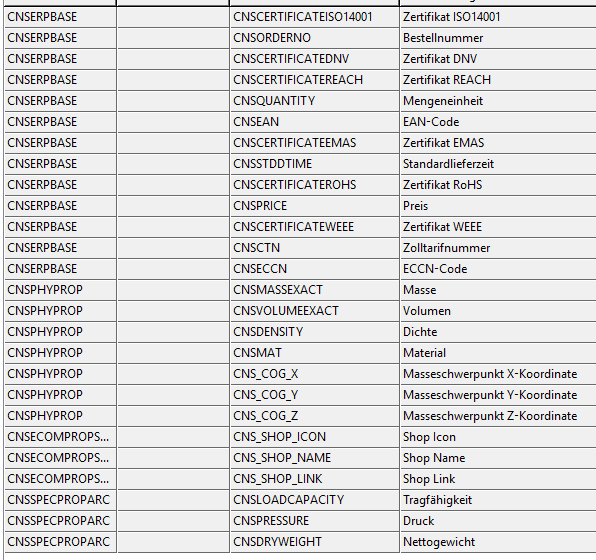

Following CNS variables can also be displayed if needed:
