1.6.5.16.1.2.  Key "ExportSubAssemblyStructure" - Support for subassemblies

The subassembly structure can also be transferred to the CAD system, although the method was changed in V12.8.

The ExportSubAssemblyStructure key has been removed.

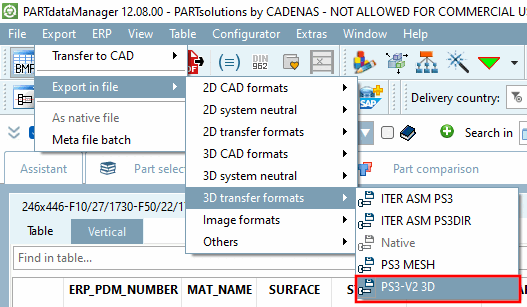

For example, use the PS3-V2 3D format (other formats will follow).

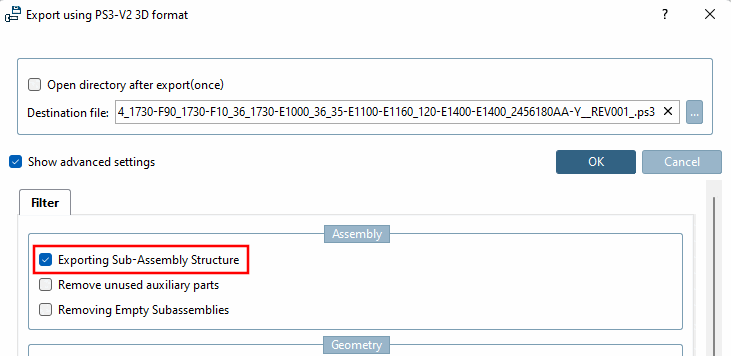

  1. Activate the Show advanced settings option in the export dialog.

  2. Activate the Export sub-assembly structure [Exporting Sub-Assembly Structure] option on the Filter Tabbed page.

  3. Download in the CAD system the PS3 file via PARTsolutions menu -> PS3 file loading [Load PS3-File].

The following two illustrations show an example of the result in NX, once without and once with a sub-assembly structure.

Assembly without subassembly structure

Assembly without subassembly structure

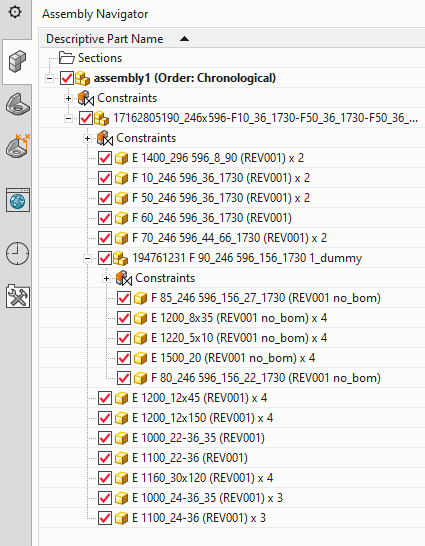

Assembly with subassembly structure

Assembly with subassembly structure
