7.11.4. [Description] for display name

[Note]Note

This element is mandatory.

The "Description" element specifies the name under which the drawing view is available for selection in the 2D view dialog box and is mandatory.

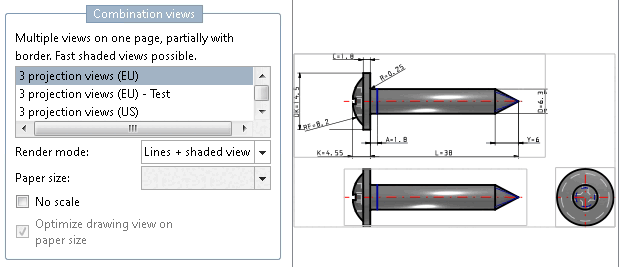

Example: 3 views EU

Example: 3 views EU

The following attributes are available:

  • default: standard description for sketch views, in case no language specific translation can be found.

  • german: standard description for all systems with language German.

  • etc.

Example:

[Description]
default=3 Views EU
german=3 Ansichten EU
french=3 vues EU
japanese=3 面図 EU
spanish=3 Proyecciones EU
italian=3 Viste EU
korean=3 면도 EU
russian=3 вида EU
chinese=3 视图 EU
