1.5.1.3.2.7. Sketcher: Turn on "Snap to grid" temporarily

If the Snap to grid setting is deactivated, you can temporarily activate it using the specified keyboard shortcut.

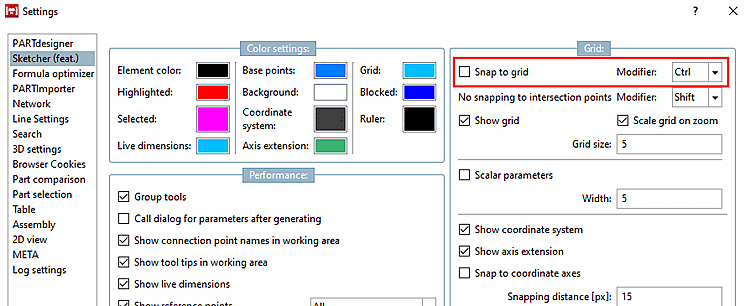

Snap to grid --- Modifier e.g. Ctrl key (default)

Snap to grid --- Modifier e.g. Ctrl key (default)
