1.5.1.3.2.6. Sketcher: Variable positioning with "Horizontal by point " or "Vertical by point "
[Note]Note

The option Horizontal through point / Vertical through point with different positioning to the origin is only officially available for future versions and is only an internal test version with V12.7.

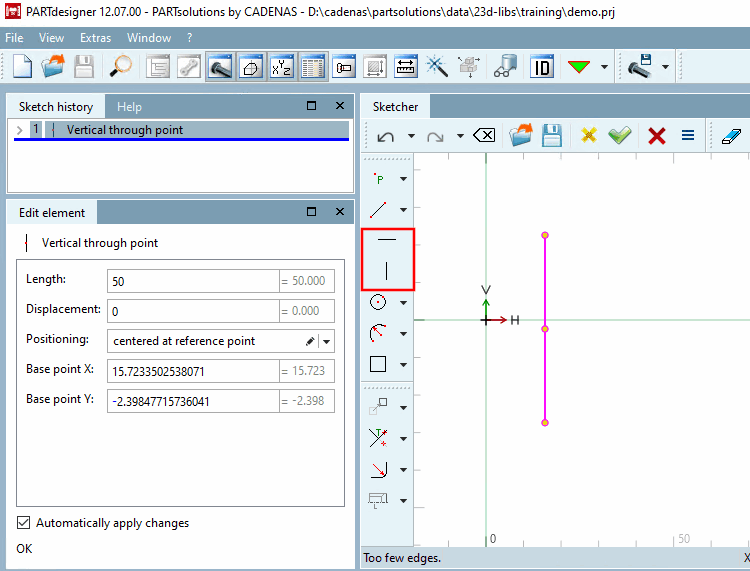

In the Edit element docking window, you can define the X/Y coordinates of the base point.

The following options are available in the list field under Positioning:

  • left to reference point

  • right to reference point

  • centered at reference point

  • centered to origin

    (corresponds to the current state)
