1.3.8.2. Status bar

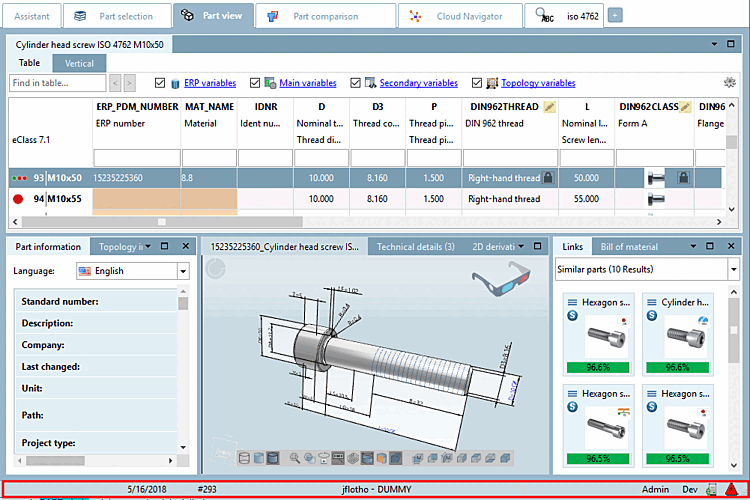

In the status bar the following information is displayed:

  • Date of the currently displayed project

  • Number of lines in the currently opened table

  • Currently selected user and role (in the above figure "location - Location 2")

    (Displayed with ERP integration)

  • User status:

    • Admin / User

      By default, this is "Admin". In this way administrative tasks can be conducted in the individual modules.

      • Under PARTdataManager -> Extras -> Settings [Preferences], the Administrator tab page is available.

      • Settings for the geometric search can be performed.

      • Catalogs can be uninstalled in PARTadmin.[43]

      • Index changes made in PARTadmin become effective for all users.[44]

    • Dev (Catalog development)

      Display depends on license.

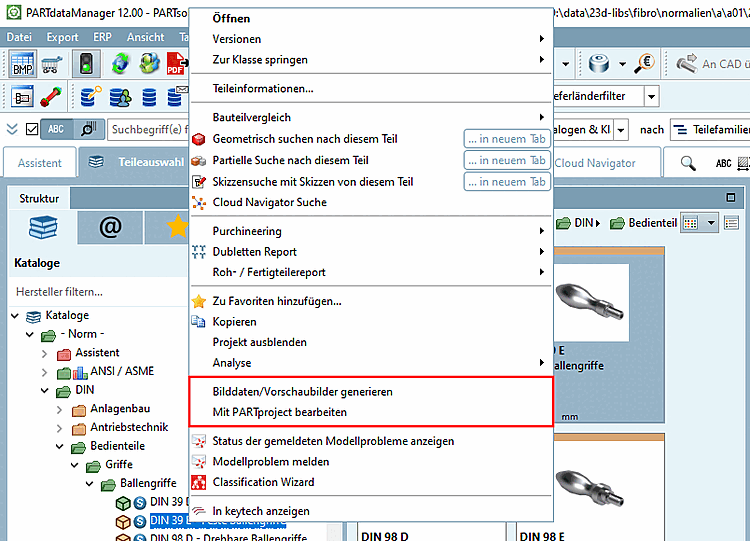

      If "Dev" is displayed, the PARTdataManager corresponding context menus for catalog development are available.

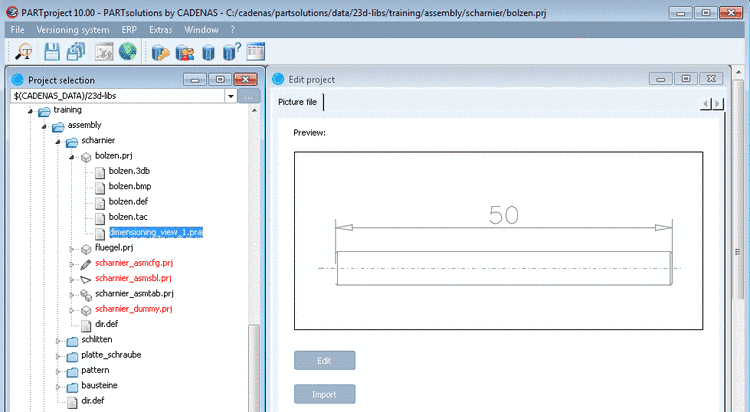

      • Edit with PARTproject

      • Generate image data/preview images

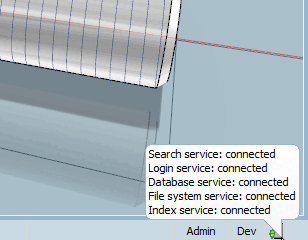

  • AppServer status

    If the AppServer is active, a corresponding icon is displayed in the PARTdataManager icon is displayed at the bottom right of the status bar. The short information provides corresponding information on mouseover.

    There are five categories which can be shown at mouseover (depending on setting):

    • Search service

    • Login service

    • Database service

    • File system service

    • Index service

    If a connection is established is displayed otherwise .

  • Messages available

    If the icon is displayed, messages are available. Click on the icon to open the Messages docking window.



[43] Whether PARTadmin is generally available is a decision of the administration.

[44] Whether PARTadmin is generally available is the decision of the administration.
