12.1.8.  Tabbed page "Parts selection"

12.1.8.1. Sorting
12.1.8.2. Project statements
12.1.8.3. Document types

  • Show small logos in project selection

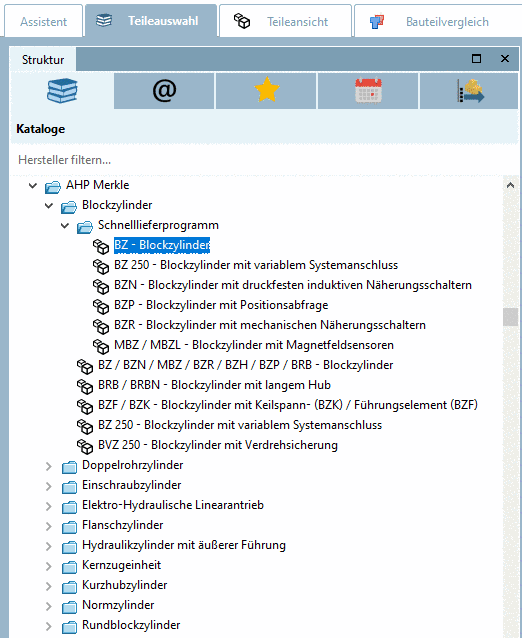

    With standard symbols

    With standard symbols

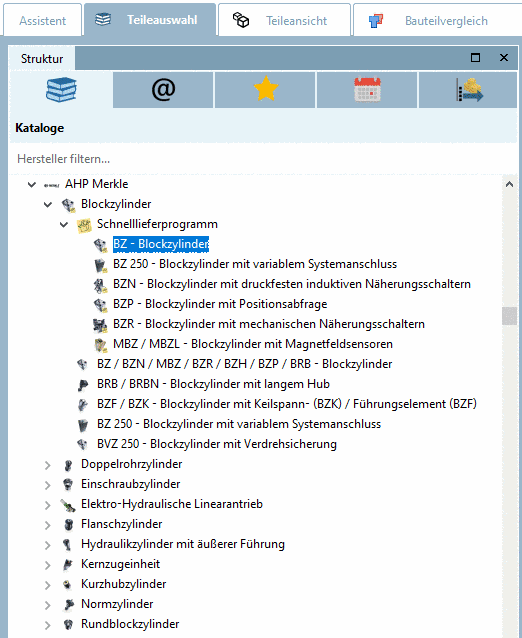

    With logos

    With logos

  • Show company logos in favorites and links: ...displays the company logo (if available) of the respective catalog.

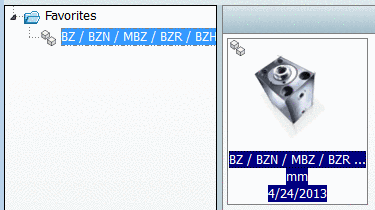

    Off

    Off

    On

    On

  • Do not show empty classifications: If the option is activated, classifications to which no projects have been assigned are hidden in the directory tree.

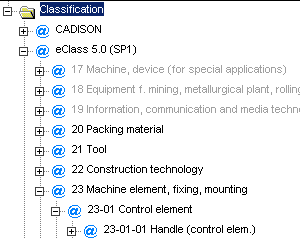

    Empty classifications displayed

    Empty classifications displayed

  • Single-click selection [Selection with single click]: Without this option, directories must be double-clicked to open them.

  • Show date: ...also shows the creation date of the respective directory/project.

  • Show validity date [Show end of life date]:

    Option activated: If standards ran out, were replaced or changed, the validity date is displayed.

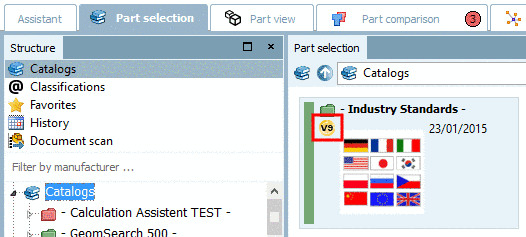

    Validity date

    Validity date

  • Display unit [Show unit]: If this option is activated, the corresponding unit is displayed for projects.

  • Show version:

    Option activated: The version itemized according to date and time is shown.

    [Note]Note

    May only be displayed if the preview size [Size of preview] is set to medium [Medium].

  • Show quality seal:

  • Show tooltip with previews

    Especially if the preview [Preview] and company logo [Company logo] are set to "small", it is helpful to move the mouse over the preview images to get an enlarged view in the tooltip.

    The feature is available both in the details view [Details] in the part selection [Part selection] and in the search dialog box [Search] of the complex search.

    If the 3D tooltip [3D Tooltip] option is active (see next point), this option is not effective.

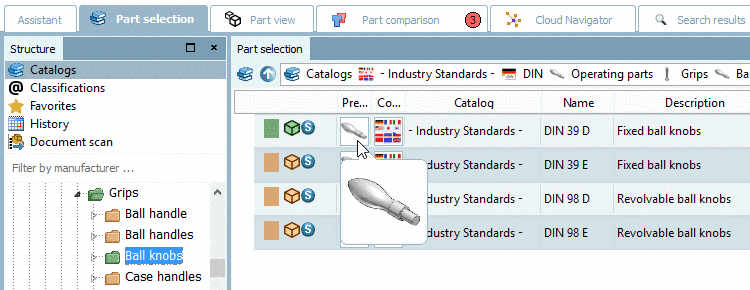

    Enlarged preview image in details view [Details]

    Enlarged preview image in details view [Details]

  • 3D Tooltip

    • No 3D Tooltip [No 3D Tooltip]

    • Small

    • Medium

    • Large

    3D tooltips [3D Tooltip] are stored in the project selection (or in the Links dialog box). If you move the mouse over a 3D preview image, the tooltip is displayed, which has an icon in the bottom right-hand corner for dragging the size.

    3D tooltip [3D Tooltip] in "Details [Details] " view

    3D tooltip [3D Tooltip] in "Details [Details] " view

    3D tooltip [3D Tooltip] in the "References [Links] " dialog

    3D tooltip [3D Tooltip] in the "References [Links] " dialog

  • Show technical view in tooltip [Show technical previews in tooltips]:

  • Display in the References window [Content of the link window] :

    Similar parts are displayed in the References [Links] dialog box. Specify here which category should be used as the basis for the comparison:

    • Last selection [Last selection]

    • Directory

    • Accessories

    • Similar parts [Similar parts]

      A geometric search is carried out in the background.

    • Special classification

  • Project filter:

    If projects are prepared accordingly by catalog manufacturer, then you can set the created filters here.

    • ALL (All projects) [All (All Projects)]: Activation of this option corresponds to the result of activating no option.

    • NONE (projects without filter) [NONE (project without filter)]:

    • All other filters are filters are created on the side of catalog manufacturer.

      Those project lines are displayed, which contain the respective filter value.

    Details on creating filters can be found under Section 5.9.2.5, “Menu item: Table filter ”.

    The filters can also be used for filtering when checking out a catalog in order to obtain a filtered catalog variant. See Section 5.8.2.1.15.10, “ Check out catalog ” out a catalog.

  • Country of delivery [Delivery country]:
