3.1.9.2.2.  Filter " tab page - Unit conversion

The following two figures show the default case: No unit conversion is processed during the export. The dimensioning values are identic in the 2D derivation of PARTdataManager and 2D CAD system.

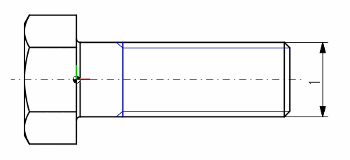

Unit 1 in PARTdataManager

Unit 1 in PARTdataManager

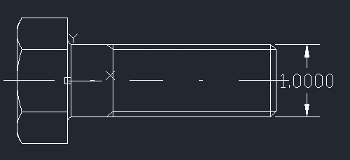

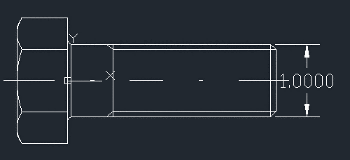

Unit 1 in 2D CAD

Unit 1 in 2D CAD

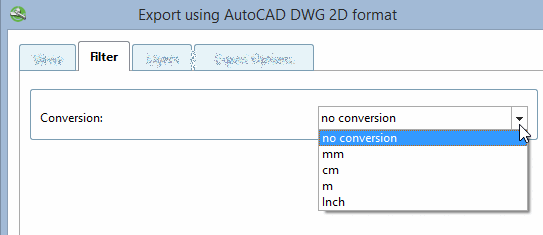

The following options are available in the Conversion list box on the Filter tab page:

  • no conversion

  • mm

    By the unit conversion from Inch to mm the value becomes 25.4 times greater.

  • cm

  • m

  • Inch

    By the unit conversion from Inch to mm the value becomes 25.4 times smaller.
