5.10.2.  2D deriv ation: Extend standard views
5.10.2.3.  Display in the PARTdataManager
Prev  Next

5.10.2.3.  Display in the PARTdataManager

In the PARTdataManager menu, select your own models after selecting 2D derivation, either using the default settings (right, left, etc.) or using the designations you have assigned yourself.

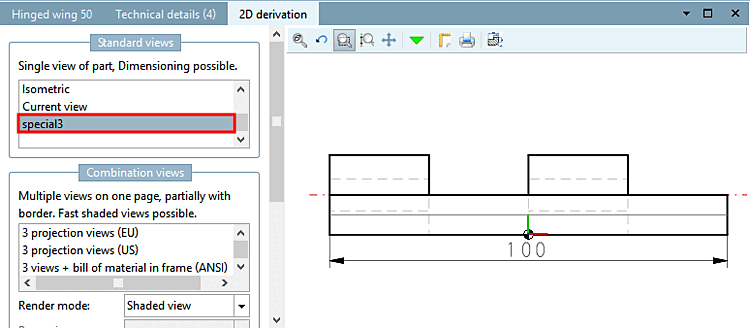

Self created 2D derivation

Self created 2D derivation
