5.12.6.3.  Index update

So that changes to the classification and assignments of classes and features to projects are available in 3Dfindit or PARTdataManager, indexes have to be updated. You can do this most conveniently directly in PARTproject [49].

After projects have been classified, i.e. assigned classes and, if necessary, characteristics, the display index and classification index must be updated.

To do this, click on the Update index and Update classification index buttons.

Buttons

Buttons

Classified projects are now displayed in 3Dfindit.

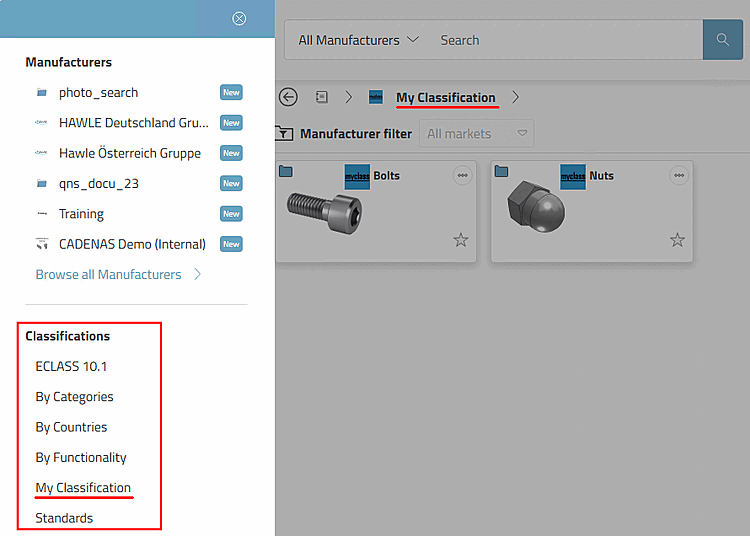

Example: 3Dfindit with its own classification "My Classification"

Example: 3Dfindit with its own classification "My Classification"

By default , PARTdataManager only Classes to which projects have already been assigned. The behavior can be set for each classification via configuration file. [50]



[49] Alternatively, you can do this via PARTadmin. See Section 1.4.3.6, “ Index administration ” in ENTERPRISE 3Dfindit (Professional) - Administration.

[50] $CADENAS_DATA/classystem.cfg -> <classification name> -> key ShowAllNodes (if applicable, -> value range 0 (All classes are displayed, empty ones too.)/1 (Only classes that have at least 1 project.)
