3.3.6.3.1. Block [AttributeMapping(is3d)] - Set attribute language
3.3.6.3.1.1. Declare prefix for ENTERPRISE 3Dfindit attributes

Set the desired language under Attr_CopyFrom_00. The keys Attr_Content_00 and Attr_Section_00 remain unchanged.

  • default: The attributes in the $CADENAS_LANGUAGE are transferred.

  • Specify language: The standard attributes are transferred in the specified language.

    Possible values are: default, german, english, italian, french, spanish, portuguese, czech, slovak, hungarian, slovenian, dutch, danish, finnish, russian, japanese, korean, chinese, polish

    [Note]Note

    If there is no translation for an attribute in the specified language, no attribute is transferred (not even the one from the $CADENAS_LANGUAGE language).

    To copy attributes, you can use the parameters var_exclude and var_visible=1. var_visible=1: (default) - tells the interface that only visible attributes are processed.

    With "var_exclude," you can assign specific attributes to an ignore list.

    Examples:

    • Attr_CopyFrom_01=default,var_exclude=A,var_visbile=1

      Variable A is explicitly added to the ignore list.

    • Attr_CopyFrom_01(isCatalog(norm))=default,var_exclude=D,var_visbile=1

      Here, the expression is applied only to the standards catalog.

  • No entry: No standard attributes are transferred. (To explicitly pass certain attributes, please see the information in the following sections)

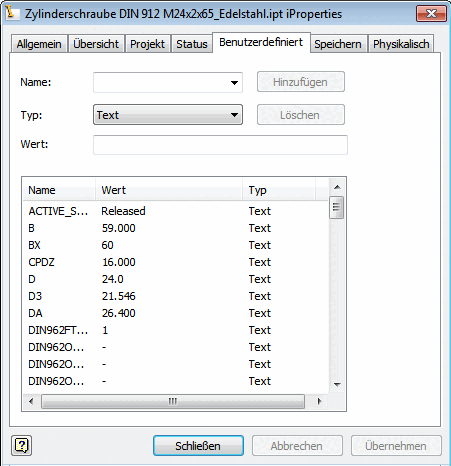

In Inventor, the ENTERPRISE 3Dfindit standard attributes are displayed under iProperties > Tabbed page User-defined.

Inventor: Tabbed page "User-defined"

Inventor: Tabbed page "User-defined"
