3.3.1.2.  Attribute mapping in AutoCAD

3.3.1.2.1. Block [AttributeMapping(is2d)]
3.3.1.2.2. Block [BomNormalAttributes] - Define BOM list attributes
3.3.1.2.2.1. Adjust BOM list attributes

ENTERPRISE 3Dfindit variables and all fields of the link database (if a link exists) can be transferred to AutoCAD using attribute mapping.

These are then available on the Block Attribute Manager dialog page and in the parts list.

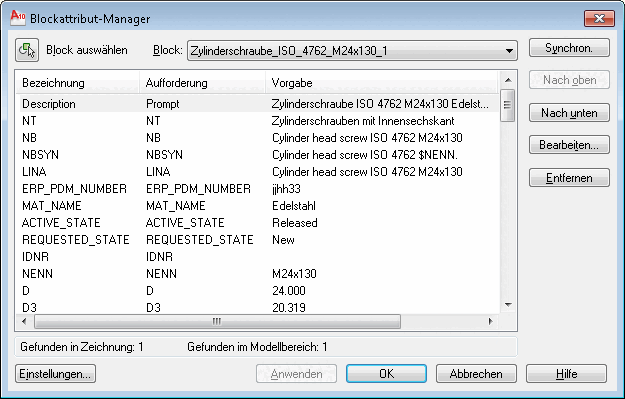

ENTERPRISE 3Dfindit Standard attributes

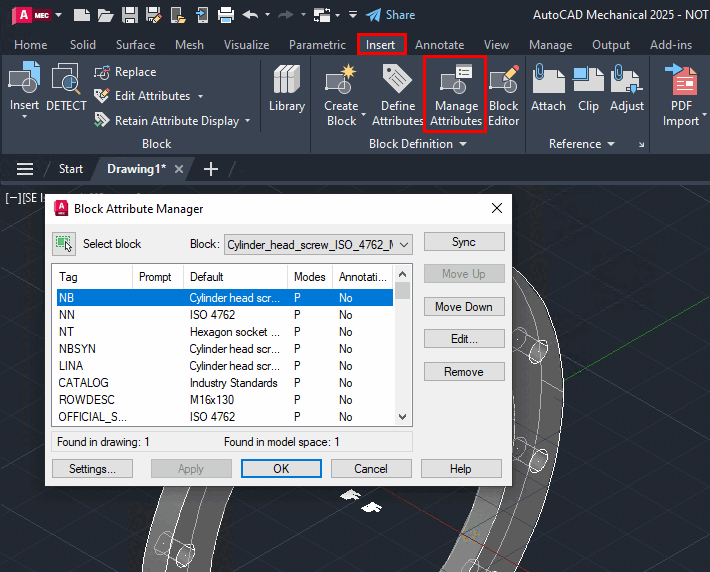

ENTERPRISE 3Dfindit Standard attributes

Attribute mapping is controlled via the following blocks:

  • AttributeMapping(is3d) - Initialization of blocks and definition of the ENTERPRISE 3Dfindit standard attributes - see AttributeMapping(is2d)

  • AttributeMapping(is2d) - Initialization of blocks and definition of the ENTERPRISE 3Dfindit standard attributes

  • BomNormalAttributes - Specifying the values of certain attributes

The following describes the single blocks:

[Note]Note

In order to edit the settings, admin rights are needed!
