1.4.1.4.2.5. Chamfer on the outside
[Note]Note

This feature is only officially available for future versions and is only an internal test version with V12.8.

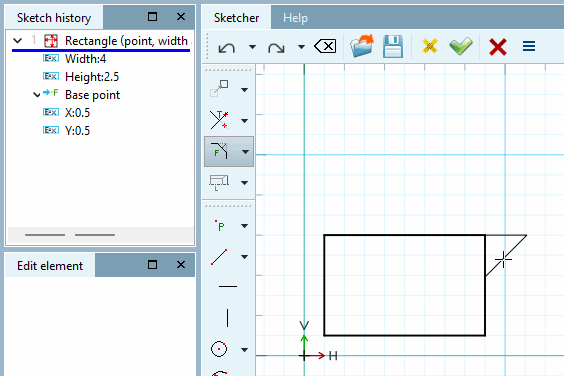

Under Fillet on 2 elements [Radius with 2 elements] it is now possible to place the chamfer outside the outlined body for the following features:

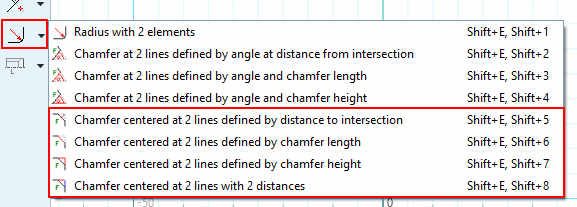

  • Bevel centered on 2 lines over distance to intersection [Chamfer centered at 2 lines defined by distance to intersection]

  • Bevel centered on 2 lines over bevel length [Chamfer centered at 2 lines defined by chamfer length]

  • Bevel centered on 2 lines over feed length [Chamfer centered at 2 lines defined by chamfer height]

  • Bevel centered on 2 lines over 2 infeed lengths [Chamfer centered at 2 lines with 2 distances]
