As soon as a user has sent the email, it is transmitted to the standards body.

Based on the stored template, the e-mail automatically receives an open.psmid file as an attachment, which contains all the important characteristics.

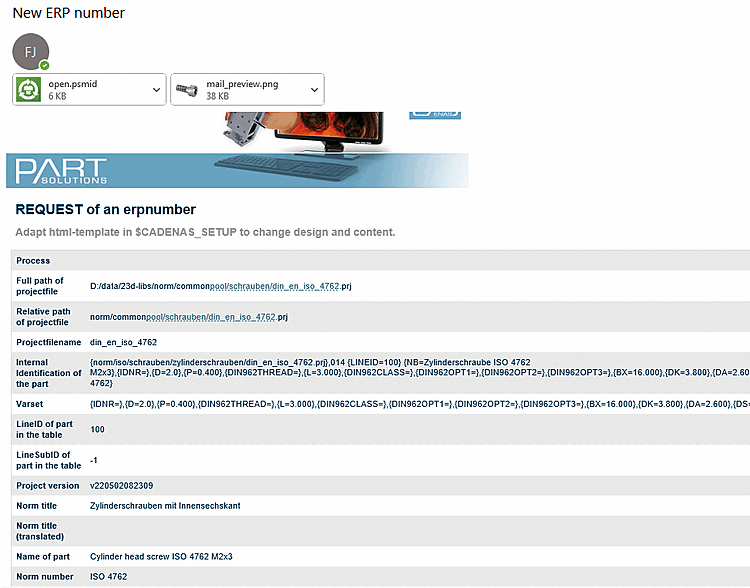

Example e-mail

If you enter the string under "Internal Identification of the part" in PARTdataManager under Extras menu > Open part via MIDENT [Open part by MIDENT], you can inspect the part directly in 3D and table view.

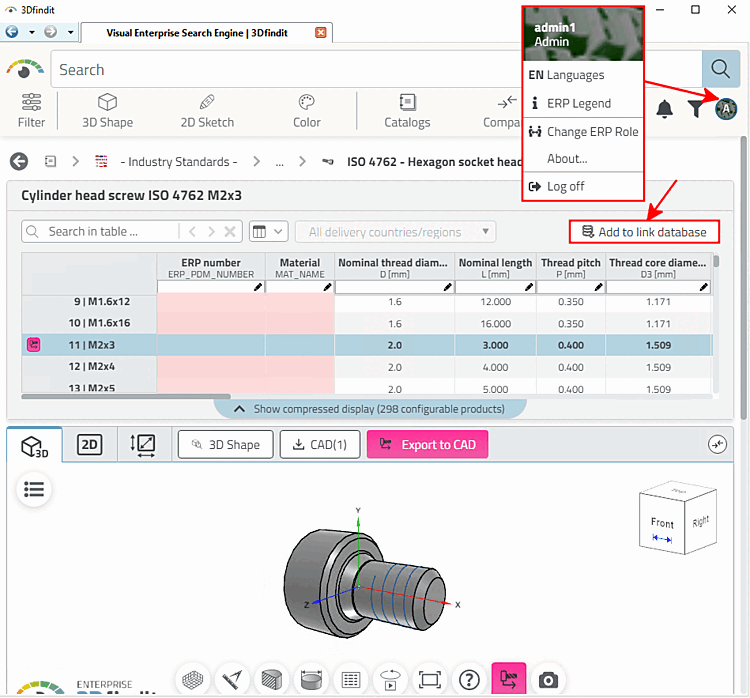

The Add to link database function in 3Dfindit or PARTdataManager is available on the standards body side.

-> The New Ident Number [new ident-no.] dialog box opens.

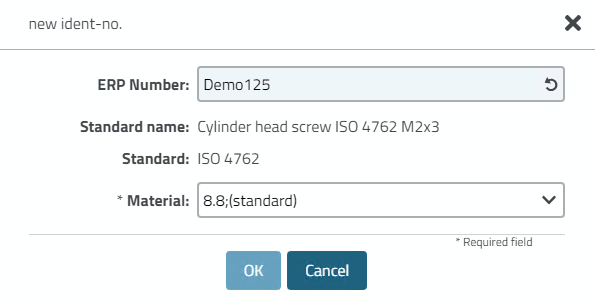

New ident number [new ident-no.]" dialog

The standards body enters the ERP number [ERP Number] and material [Material].

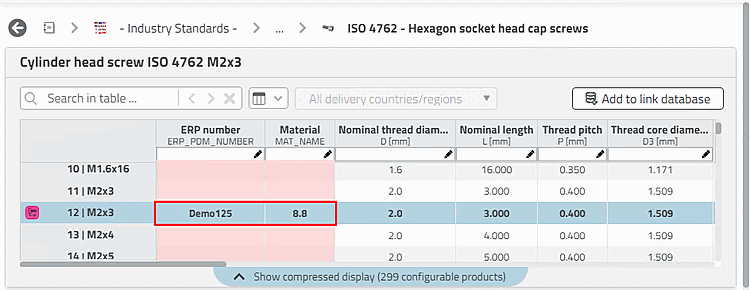

-> The table row now shows the entered data.

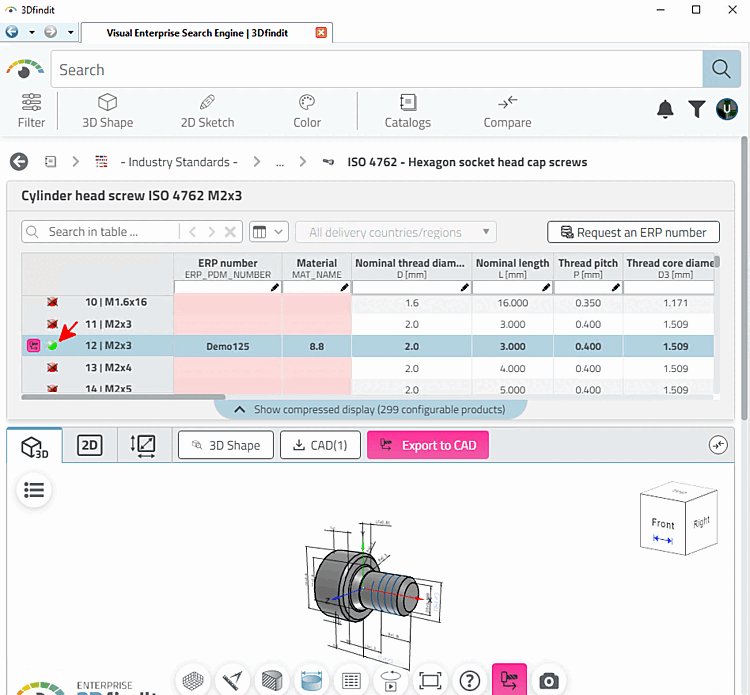

A test login with the user account shows that the status display is now green, meaning that the part can be exported to CAD.
