1.4.1.11.3. Table filtered by accessory part

In the Links docking window, "related", alternative or in any way related parts, assemblies, etc. to the currently selected component are automatically listed - if available.

If the Accessories option is selected in the list field, accessories that have been classified as such by the manufacturer are displayed.

[Note]Note

  • Accessories do not have to be available for all lines.

  • Different accessories can also be displayed depending on the line selection.

  • The accessory part itself can also be filtered. In this case, a corresponding icon with tooltip Accessory part filter on/off [accessory part filter on/off] is displayed.[a]

[a] You can find information on the corresponding project creation under the Section 5.9.10, “Tabbed page: Accessories ” in eCATALOGsolutions - Manual.

Example:

  1. In the Links docking window, select the Accessories list box option. A different accessory is displayed for line 1 than for line 3.

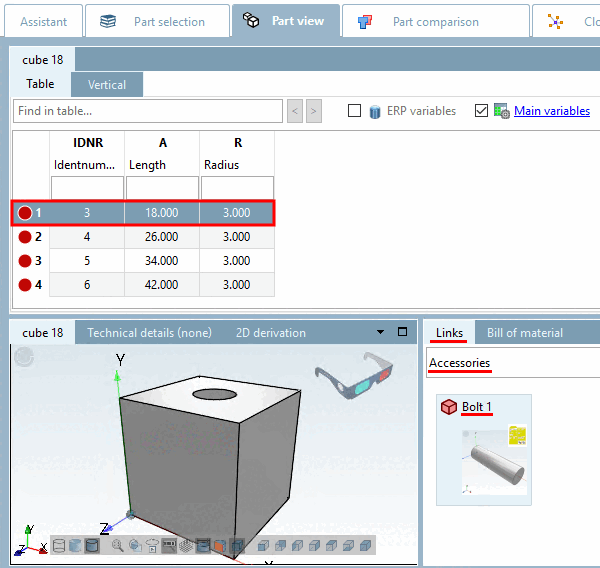

    Accessory part 1

    Accessory part 1

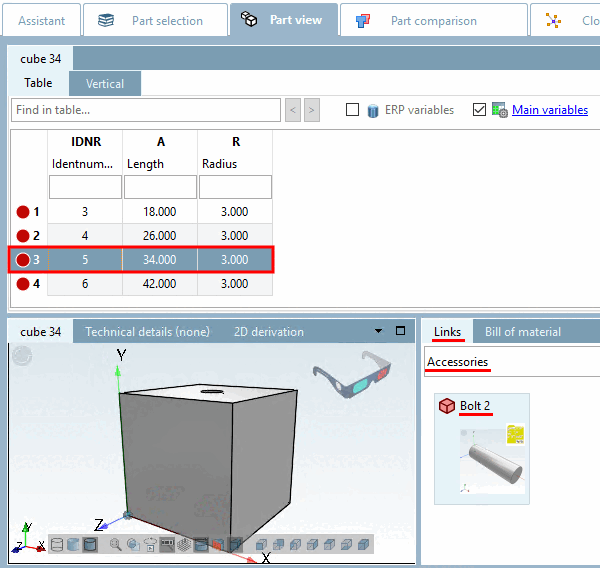

    Accessory part 2

    Accessory part 2

  2. Open accessory part 1.

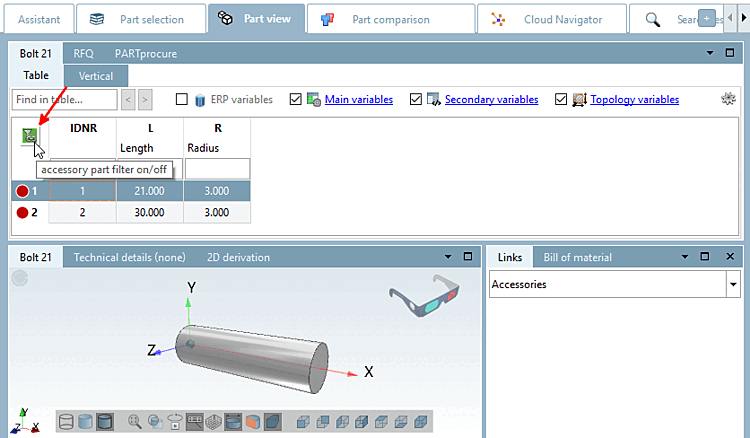

    If a filter is applied when opening, you can recognize this by the accessory part filter on/off icon (on / off ) at the top left of the table. You can use this to activate and deactivate the filter.

    accessory part filter on/off

    accessory part filter on/off
