5.1. User "demo" = "Windows User"

5.1.1. Basics for orientation
5.1.2. Preferred series - Display condition for part selection - Export condition
5.1.3. Status indicating bitmaps for table view
5.1.4. Status colors for catalog index
5.1.5. Column display
5.1.6. Viewing condition for table rows

Login with "Windows user" and user "demo" provides the same roles:

  • Administrator

  • Product Design Aircraft

  • Product Design Automotive

  • Product Design Shipbuilding

  • Tooling USA

  • Tooling Germany

  • Tooling Japan

  • Purchineering

  • Warehouse Management

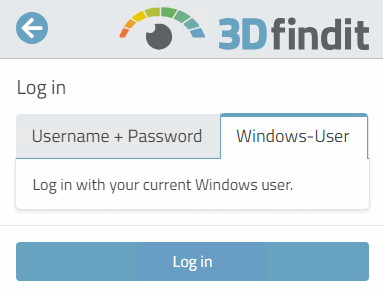

Log in

Log in

In this example, the roles Dummy and Product design aircraft construction are to be considered in particular. The other roles only differ in the specially displayed columns.

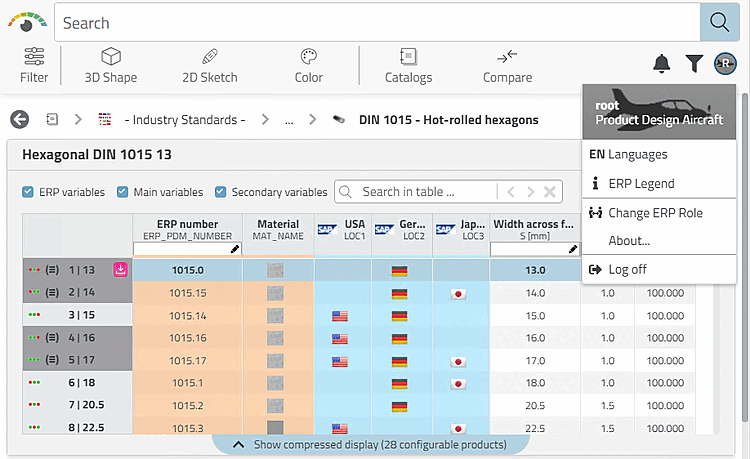

Following figure shows the role "Product Design Aircraft" when loading the sample part ISO 1015:

Role "Product Design Aircraft"

Role "Product Design Aircraft"
