1.6.1.1.5. Partial search on the basis of toroidal and spherical faces

As of V12 a Partial search can also be successfully performed when selecting toroidal or spherical faces.

Sphere

Torus

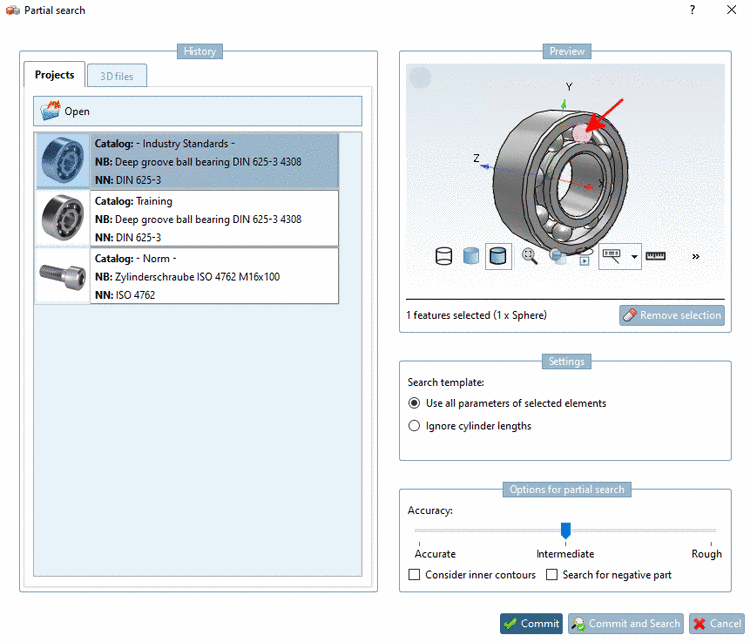

Example: Partial search - Feature "Sphere"

Note

	Note
A catalog to be searched through has to be accordingly indexed for the partial search, meaning the following key needs to be set and after this the geo index needs to be created/updated. Configuration file: `$CADENAS_SETUP/geomsearch.cfg` PartialSearchCatalogs=cat/mycatalog Accordingly indexed catalog can be recognized by the icon (PARTadmin -> Index administration).

A catalog to be searched through has to be accordingly indexed for the partial search, meaning the following key needs to be set and after this the geo index needs to be created/updated.

Configuration file: $CADENAS_SETUP/geomsearch.cfg

PartialSearchCatalogs=cat/mycatalog

Accordingly indexed catalog can be recognized by the icon (PARTadmin -> Index administration).
