1.6.1.1.6.  3D view: Button "Show auxiliary geometry"

As of V12 the display of auxiliary geometry can be explicitly controlled in the 3D view via button Show auxiliary geometry.

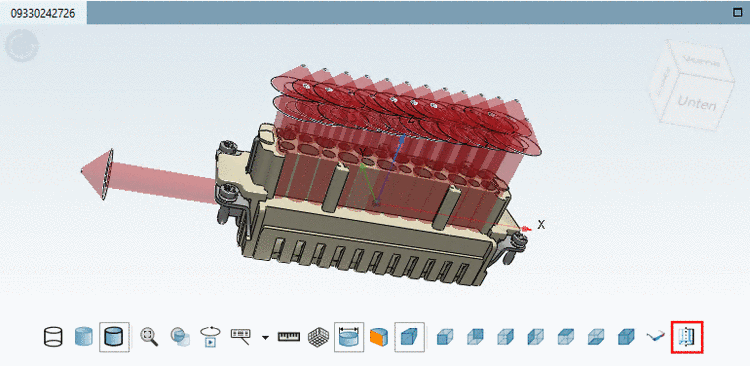

Auxiliary geometry visible

Auxiliary geometry visible

In order not to clutter the display, either auxiliary geometries or classes are shown. When activating the one function the respective other one is disabled.

Classes visible

Classes visible
