1.6.1.3.2.2. Handling improved for many functions

With V12 the handling of different functions such as Base extrude, Cut extrude, Pattern, Sweep, etc. has been basically improved.

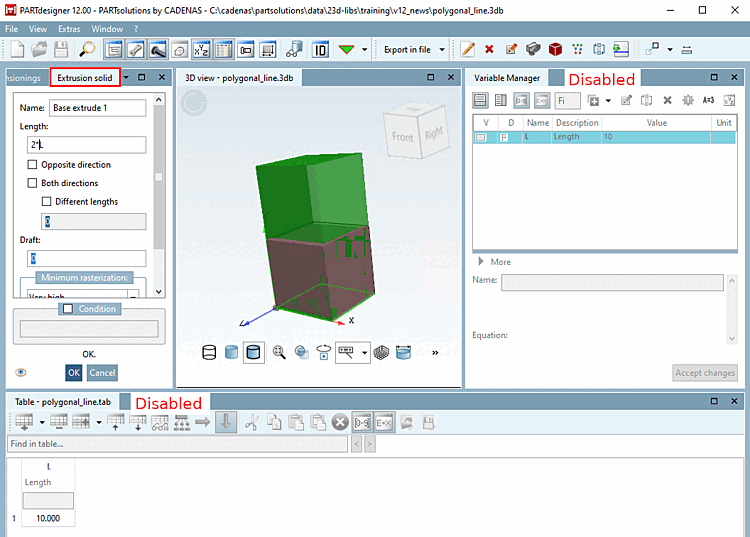

Docking window "Tool" exemplarily at "Base extrude" / "Extrusion solid"

Docking window "Tool" exemplarily at "Base extrude" / "Extrusion solid"

  • Editing dialogs have got their own docking window Tool. The window's labeling is corresponding to the called function (for example at "Base extrude" "Extrusion solid"). As long as a tool is active, History tree, Variable Manager, Table are automatically disabled in order to prevent model changes; furthermore the context menu of the 3D view is not displayed.

  • The 3D view itself stays active even if the editing dialog is opened. You can also change values and the effect will be immediately visible in 3D.[6]

  • The docking window Tool behaves as all others, too. It allows to adjust size, position and to free it from the grouping.

  • If the docking window is closed with a tool in active state, changes are not applied.

  • The docking window can be shown or hidden, if the current view is 3D modelling (same behavior as the history tree) and allows no access as long as the sketcher view is active or you are in the table mode[7].

    Tool icon disabled

    Tool icon disabled

  • According to the selection in the 3D History or 3D view, inside the toolbar Tool, the corresponding icons are shown. The same commands can also be found in the context menus of the history tree. In the following you will get an overview on the different possibilities of selection.

    Part selected

    Part (root element) selected

    Part (root element) selected

    • Identification data:

    • Insert fixed plane:

    • Exchange base planes:

    • Move/Rotate the complete part.

    • Scale:

    • Mirror:

    • Transparency:

    • Measure:

    Plane selected

    Plane selected

    Plane selected

    • Delete plane:

    • Paste sketch:

    • New sketch:

    • New 2D drawing:

    • Create pipe:

    • Insert new plane:

    • Visible:

    • Transparency:

    • Measure:

    Base extrude or Cut extrude selected

    Base extrude selected

    Base extrude selected

    • Edit...:

    • Delete:

    • Rename entry:

    • Feature attributes:

    • Select all related faces in 3D view:

    • Apply pattern:

    • Convert to cut:

    • Set mark:

    • Transparency:

    • Measure:

    Sketch selected

    Sketch selected

    Sketch selected

    • Edit...:

    • Delete:

    • Rename entry:

    • Copy (only sketch):

    • Cut (including dependencies):

    • Duplicate sketch:

    • Set mark:

    • Transparency:

    • Measure:

    2D drawing selected

    2D drawing selected

    2D drawing selected

    • Edit...:

    • Delete:

    • Rename entry:

    • Properties:

    • Set mark:

    • Transparency:

    • Measure:

    ONE plane selected in 3D view

    ONE plane selected in 3D view

    ONE plane selected in 3D view

    • Edit...:

    • Delete:

    • Rename entry:

    • Feature attributes:

    • Select all related faces in 3D view:

    • Apply pattern:

    • Convert to cut:

    • Set mark:

    • Paste sketch:

    • Face attributes:

    • New Chamfer/Fillet...:

    • Generate sketch on selected face:

    • Visible in this configuration:

    • Sketch <selected> edit:




[6] If in V11 an editing dialog was opened (e.g. for "Base extrude"), it was not possible to access the 3D view.

[7] PARTdesigner started via tab/tac file
