8.2.1. Functionality from the user's perspective

Initial situation: The desired part cannot be can be exported to CAD because the status indicator is red . This means that the user must, for example, standards body request that the part be included in the ERP/PDM system. becomes.

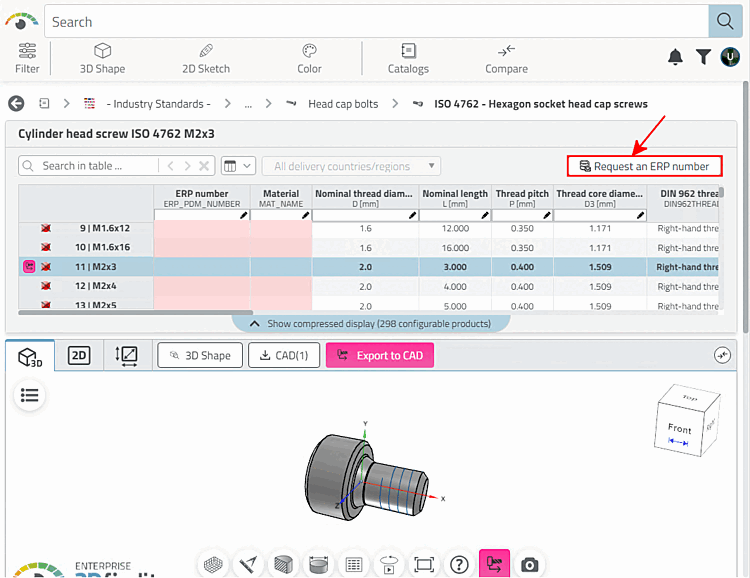

  1. The User clicks on the button ERP number . [Request ERP number]

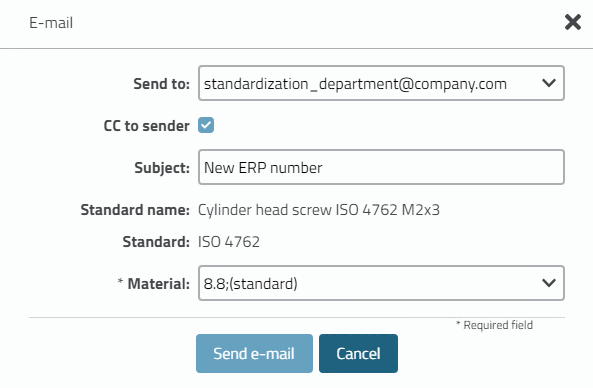

    -> The E-mail [Email address] dialog box opens.

  2. The user selects the default entry in the list field under Send to or enters an e-mail address in the free input field and selects the desired one in the list field under Material.

    Finally, click on Send e-mail.

  3. The user must now wait until the part has been accepted and released by the standards body in the ERP/PDM.

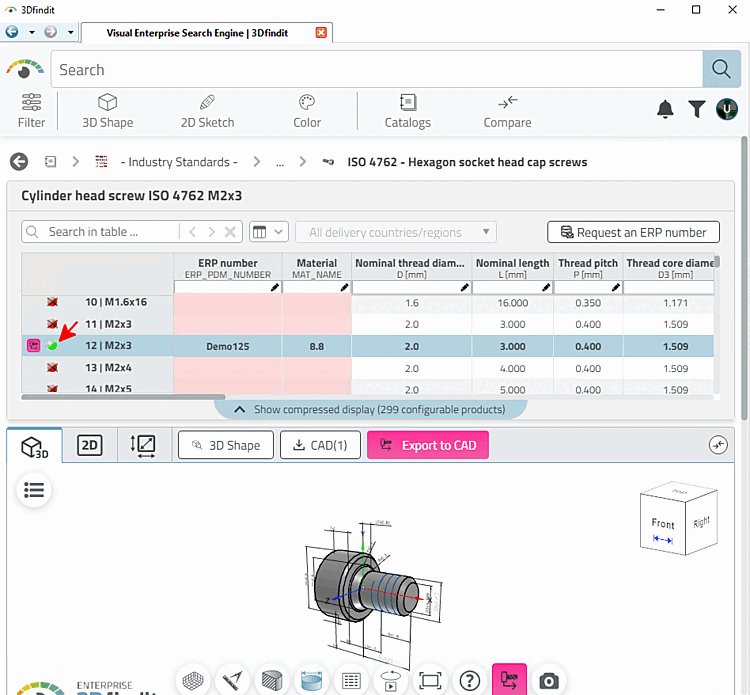

    To be recognized this is because the status indicator will then turn to green. will stand.

  4. The desired part can then be exported to CAD.
